DRV8801A-Q1 Series

Automotive 40-V, 2.8-A H-bridge motor driver with current feedback with wettable flank QFN packag

Catalog

Automotive 40-V, 2.8-A H-bridge motor driver with current feedback with wettable flank QFN packag

Part	Supplier Device Package	Applications	Package / Case	Motor Type - Stepper	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output	Function	Mounting Type	Interface	Motor Type - AC, DC	Technology	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Grade
Texas Instruments DRV8801RTYR	16-QFN (4x4)	General Purpose	16-WQFN Exposed Pad	Bipolar	Half Bridge (2)	38 V	8 V	2.8 A	Driver - Fully Integrated Control and Power Stage	Surface Mount	Parallel	Brushed DC	DMOS	8 V	38 V	150 °C	-40 °C
Texas Instruments DRV8801QRTYRQ1	16-QFN (4x4)		16-WQFN Exposed Pad	Bipolar	Half Bridge (2)	38 V	8 V	2.8 A	Driver - Fully Integrated Control and Power Stage	Surface Mount	Parallel	Brushed DC	DMOS	8 V	38 V	150 °C	-40 °C	AEC-Q100	Automotive
Texas Instruments DRV8801RTYT	16-QFN (4x4)	General Purpose	16-WQFN Exposed Pad	Bipolar	Half Bridge (2)	38 V	8 V	2.8 A	Driver - Fully Integrated Control and Power Stage	Surface Mount	Parallel	Brushed DC	DMOS	8 V	38 V	150 °C	-40 °C

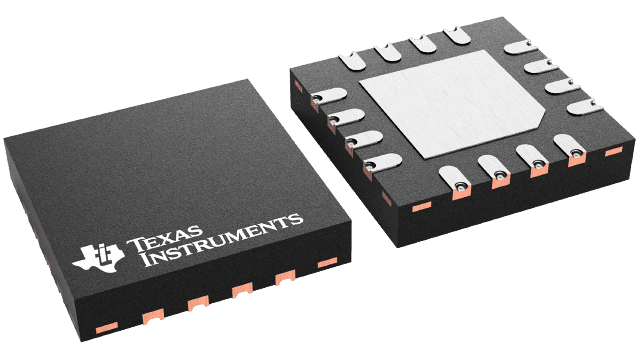

Texas Instruments DRV8801AQRMJRQ1	16-WQFN (4x4)		16-WQFN Exposed Pad	Bipolar	Half Bridge (2)	36 V	6.5 VDC	2.8 A	Driver - Fully Integrated Control and Power Stage	Surface Mount Wettable Flank	Parallel	Brushed DC	DMOS	6.5 V	36 V	150 °C	-40 °C	AEC-Q100	Automotive

Catalog

Automotive 40-V, 2.8-A H-bridge motor driver with current feedback with wettable flank QFN packag

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With The Following Results:Device Temperature Grade 1: TA= –40°C to 125°CDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4Low RDS(on)Outputs (0.83-Ω HS + LS Typical)Low-Power Sleep Mode100% PWM Duty Cycle Supported8–38 V Operating Supply Voltage RangeThermally Enhanced Surface Mount PackageConfigurable Overcurrent LimitProtection FeaturesVBB Undervoltage Lockout (UVLO)Overcurrent Protection (OCP)Short-to-supply ProtectionShort-to-ground ProtectionOvertemperature Warning (OTW)Overtemperature Shutdown (OTS)Overcurrent and Overtemperature Fault Conditions Indicated on Pins (nFAULT)Qualified for Automotive ApplicationsAEC-Q100 Qualified With The Following Results:Device Temperature Grade 1: TA= –40°C to 125°CDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4Low RDS(on)Outputs (0.83-Ω HS + LS Typical)Low-Power Sleep Mode100% PWM Duty Cycle Supported8–38 V Operating Supply Voltage RangeThermally Enhanced Surface Mount PackageConfigurable Overcurrent LimitProtection FeaturesVBB Undervoltage Lockout (UVLO)Overcurrent Protection (OCP)Short-to-supply ProtectionShort-to-ground ProtectionOvertemperature Warning (OTW)Overtemperature Shutdown (OTS)Overcurrent and Overtemperature Fault Conditions Indicated on Pins (nFAULT)

Description

The DRV8801A-Q1 device provides a versatile motor-driver solution with a full H-bridge driver. The device can drive a brushed DC motor or one winding of a stepper motor, as well as other devices like solenoids. A simple PHASE and ENABLE interface allows easy interfacing to controller circuits. The output stages use N-channel power MOSFETs configured as an H-bridge. The DRV8801A-Q1 device is capable of peak output currents up to ±2.8 A and operating voltages up to 36 V. An internal charge pump generates required gate drive voltages. A low-power sleep mode is provided which shuts down internal circuitry to achieve very low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection functions are provided undervoltage lockout, overcurrent protection, short-to-supply protection, short-to-ground protection, overtemperature warning, and overtemperature shutdown. Overcurrent (including short-to-ground and short-to-supply) and overtemperature fault conditions are indicated via an nFAULT pin. The DRV8801A-Q1 device is packaged in a 16-pin WQFN package with wettable flanks and exposed thermal pad (Eco-friendly: RoHS & no Sb/Br). The DRV8801A-Q1 device provides a versatile motor-driver solution with a full H-bridge driver. The device can drive a brushed DC motor or one winding of a stepper motor, as well as other devices like solenoids. A simple PHASE and ENABLE interface allows easy interfacing to controller circuits. The output stages use N-channel power MOSFETs configured as an H-bridge. The DRV8801A-Q1 device is capable of peak output currents up to ±2.8 A and operating voltages up to 36 V. An internal charge pump generates required gate drive voltages. A low-power sleep mode is provided which shuts down internal circuitry to achieve very low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection functions are provided undervoltage lockout, overcurrent protection, short-to-supply protection, short-to-ground protection, overtemperature warning, and overtemperature shutdown. Overcurrent (including short-to-ground and short-to-supply) and overtemperature fault conditions are indicated via an nFAULT pin. The DRV8801A-Q1 device is packaged in a 16-pin WQFN package with wettable flanks and exposed thermal pad (Eco-friendly: RoHS & no Sb/Br).
