C1704 Series

Catalog

CABLE SPKR 2COND 16AWG WHITE

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Wire Gauge	Conductor Insulation	Number of Conductors	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Length
Prysmian Group C1704.25.02	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	152.4 m	500 ft	-20 ░C	60 °C	4.85 mm	0.191 "	White	16 AWG	Polypropylene (PP)	2	Speaker
Prysmian Group C1704.30.07	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	304.8 m	1000 ft	-20 ░C	60 °C	4.85 mm	0.191 "	Blue	16 AWG	Polypropylene (PP)	2	Speaker

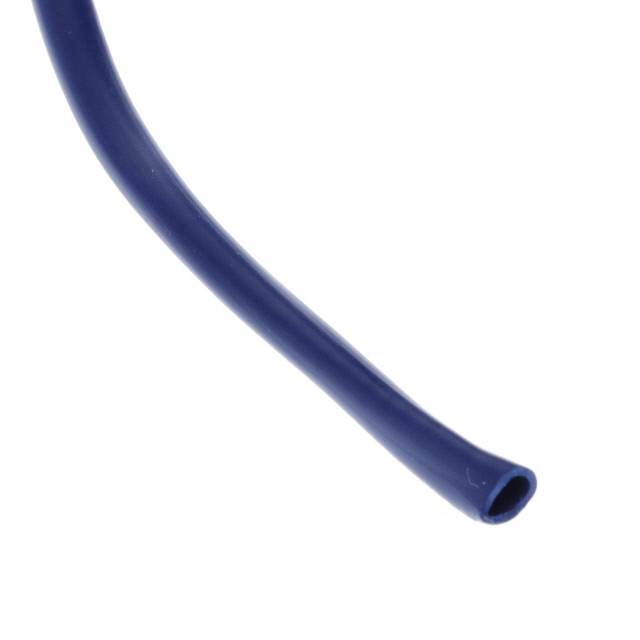

Prysmian Group C1704.38.07	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	-20 ░C	60 °C	4.85 mm	0.191 "	Blue	16 AWG	Polypropylene (PP)	2	Speaker	7.62 m	25 ft
Prysmian Group C1704.25.02	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	152.4 m	500 ft	-20 ░C	60 °C	4.85 mm	0.191 "	White	16 AWG	Polypropylene (PP)	2	Speaker
Prysmian Group C1704.25.07	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	152.4 m	500 ft	-20 ░C	60 °C		5.03 mm	Blue	16 AWG	Polypropylene (PP)	2	Speaker			0.198 in
Prysmian Group C1704.30.02	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	304.8 m	1000 ft	-20 ░C	60 °C	4.85 mm	0.191 "	White	16 AWG	Polypropylene (PP)	2	Speaker
Prysmian Group C1704.25.07	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	152.4 m	500 ft	-20 ░C	60 °C		5.03 mm	Blue	16 AWG	Polypropylene (PP)	2	Speaker			0.198 in
Prysmian Group C1704.30.07	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	304.8 m	1000 ft	-20 ░C	60 °C	4.85 mm	0.191 "	Blue	16 AWG	Polypropylene (PP)	2	Speaker
Prysmian Group C1704.38.07	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	-20 ░C	60 °C	4.85 mm	0.191 "	Blue	16 AWG	Polypropylene (PP)	2	Speaker	7.62 m 30.5 m	25 ft 100 ft		Enter Number of Feet in Order Quantity
Prysmian Group C1704.30.02	0.021 in	0.533 mm	300 VDC	Copper Bare	Poly-Vinyl Chloride (PVC)	30 AWG	26	Audio-Video Home	304.8 m	1000 ft	-20 ░C	60 °C	4.85 mm	0.191 "	White	16 AWG	Polypropylene (PP)	2	Speaker
