PQ12-100 Series

Catalog

PQ12-P MICRO LINEAR ACTUATOR

Part	Feedback Type	Load Force (Dynamic)	Load Force (Dynamic)	Speed	Speed	Construction	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Stroke Length	Stroke Length	Motor Type	Duty Cycle	Voltage - Rated	Gear Reduction Ratio	Type	Features

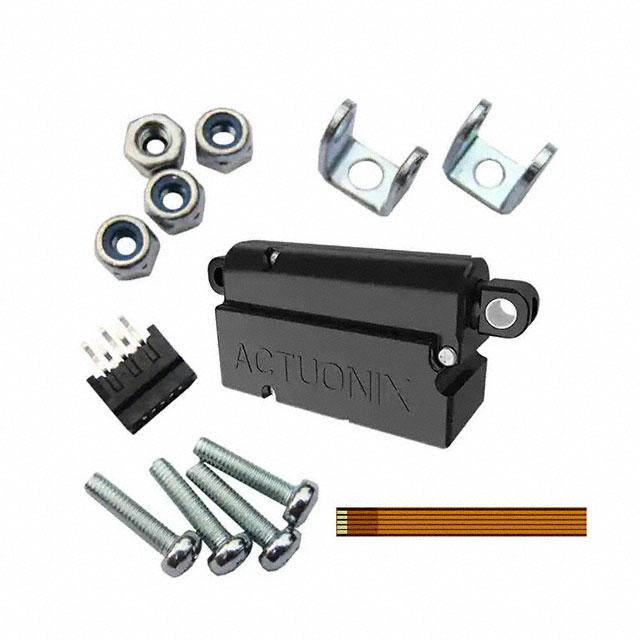

Actuonix Motion Devices Inc PQ12-100-12-P	Potentiometer	11.24 lbf	50 N	0.39 in/s	10 mm/s	Ball Screw	IP54 - Dust Protected Water Resistant	50 °C	-10 °C	0.1 mm	20 mm	0.787 in	Brushed	20 %	12 VDC	100	Linear Actuator

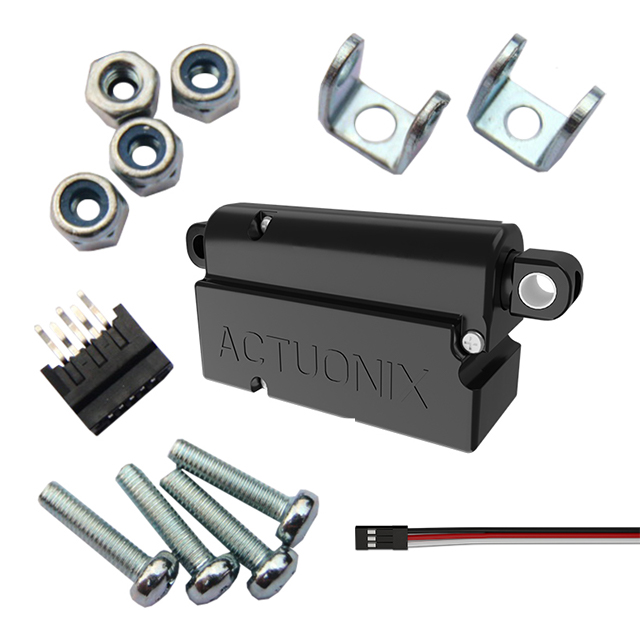

Actuonix Motion Devices Inc PQ12-100-6-R		11.24 lbf	50 N	0.39 in/s	10 mm/s	Ball Screw	IP54 - Dust Protected Water Resistant	50 °C	-10 °C	0.1 mm	20 mm	0.787 in	Brushed	20 %	6 VDC	100	Linear Actuator	RC Linear Servo
Actuonix Motion Devices Inc PQ12-100-6-P	Potentiometer	11.24 lbf	50 N	0.39 in/s	10 mm/s	Ball Screw	IP54 - Dust Protected Water Resistant	50 °C	-10 °C	0.1 mm	20 mm	0.787 in	Brushed	20 %	6 VDC	100	Linear Actuator

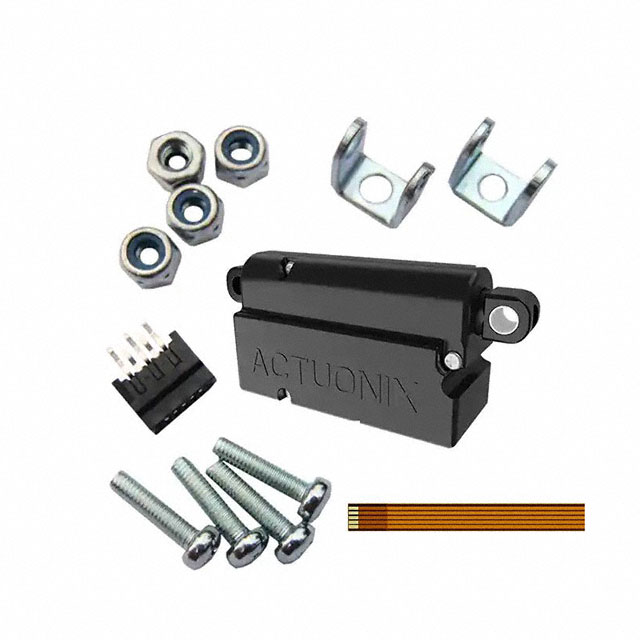

Actuonix Motion Devices Inc PQ12-100-6-S		11.24 lbf	50 N	0.39 in/s	10 mm/s	Ball Screw	IP54 - Dust Protected Water Resistant	50 °C	-10 °C	0.1 mm	20 mm	0.787 in	Brushed	20 %	6 VDC	100	Linear Actuator	Limit Switches
Actuonix Motion Devices Inc PQ12-100-12-S		11.24 lbf	50 N	0.39 in/s	10 mm/s	Ball Screw	IP54 - Dust Protected Water Resistant	50 °C	-10 °C	0.1 mm	20 mm	0.787 in	Brushed	20 %	12 VDC	100	Linear Actuator	Limit Switches
