ADP1764 Series
Manufacturer: Analog Devices
Beta
⌘K
4 A, LOW VIN, LOW NOISE, CMOS LINEAR REGULATOR
| Part | Voltage - Input (Max) [Max] | Protection Features | Supplier Device Package | Control Features | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Number of Regulators | Voltage Dropout (Max) [Max] | PSRR [Max] | PSRR [Min] | Voltage - Output (Min/Fixed) | Current - Output | Current - Supply (Max) [Max] | Output Type | Mounting Type | Output Configuration | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Voltage - Output [Min] | Voltage - Output [Max] | Board Type | Regulator Type | Channels per IC | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 1.98 V | Current Limit Thermal Overload | 16-LFCSP (3x3) | Enable Power Good Soft Start | 16-WFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 1 | 0.075 V | 69 dB | 35 dB | 1.2 V | 4 A | 23 mA | 1.81 mOhm | Surface Mount | Positive | |||||||||
 Analog Devices | 1.98 V | Current Limit Thermal Overload | 16-LFCSP (3x3) | Enable Power Good Soft Start | 16-WFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 1 | 0.075 V | 69 dB | 35 dB | 1.1 V | 4 A | 23 mA | 1.81 mOhm | Surface Mount | Positive | |||||||||
Analog Devices | 1.98 V | Current Limit Thermal Overload | 16-LFCSP (3x3) | Enable Power Good Soft Start | 16-WFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 1 | 0.075 V | 69 dB | 35 dB | 1.25 V | 4 A | 23 mA | 1.81 mOhm | Surface Mount | Positive | |||||||||
Analog Devices | 1.98 V | Current Limit Thermal Overload | 16-LFCSP (3x3) | Enable Power Good Soft Start | 16-WFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 1 | 0.075 V | 69 dB | 35 dB | 1 V | 4 A | 23 mA | 1.81 mOhm | Surface Mount | Positive | |||||||||
Analog Devices | 1.98 V | Current Limit Thermal Overload | 16-LFCSP (3x3) | Enable Power Good Soft Start | 16-WFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 1 | 0.075 V | 69 dB | 35 dB | 0.95 V | 4 A | 23 mA | 1.81 mOhm | Surface Mount | Positive | |||||||||
Analog Devices | 1.98 V | Current Limit Thermal Overload | 16-LFCSP (3x3) | Enable Power Good Soft Start | 16-WFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 1 | 0.075 V | 69 dB | 35 dB | 0.9 V | 4 A | 23 mA | 1.81 mOhm | Surface Mount | Positive | |||||||||

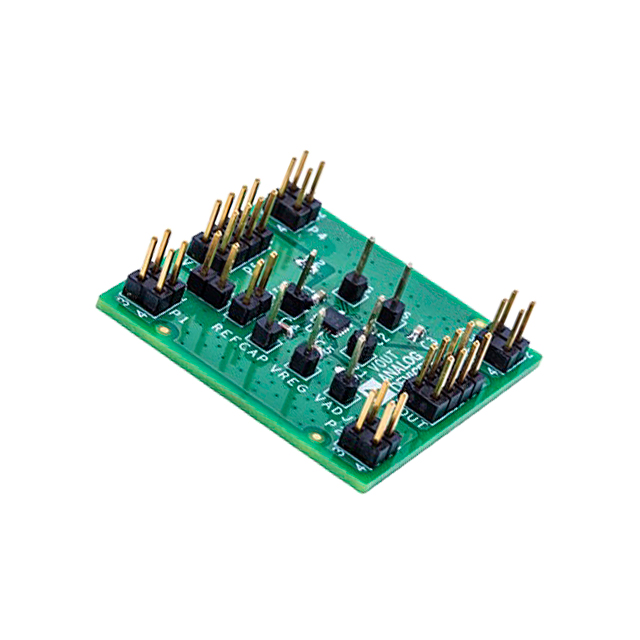

 Analog Devices | 4 A | 1.98 V | 1.1 V | Board(s) | 0.5 V | 1.5 V | Fully Populated | Positive Adjustable | 1 - Single | ADP1764 | ||||||||||||||||
Analog Devices | 1.98 V | Current Limit Thermal Overload | 16-LFCSP (3x3) | Enable Power Good Soft Start | 16-WFQFN Exposed Pad CSP | -40 °C | 125 ¯C | 1 | 0.075 V | 69 dB | 35 dB | 1.5 V | 4 A | 23 mA | 1.81 mOhm | Surface Mount | Positive |
