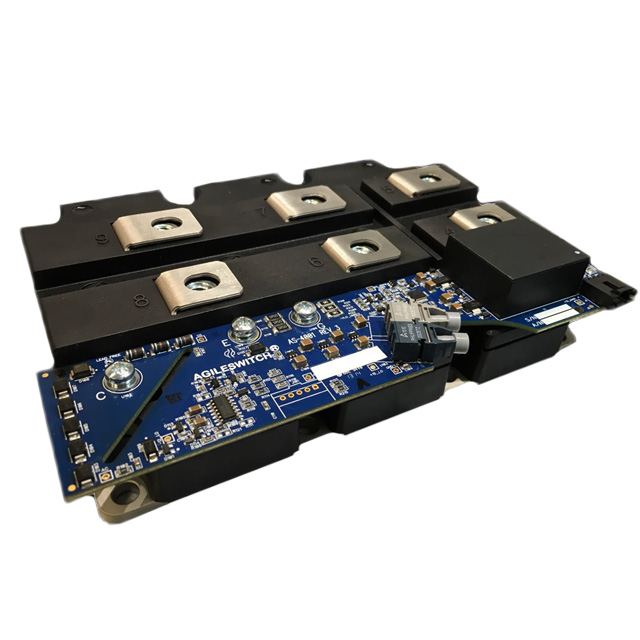

HPFM-00117 Series

AgileSwitch HPM Fiber Master - 3300V

Catalog

AgileSwitch HPM Fiber Master - 3300V

Part	Gate Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Channel Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Number of Drivers	Driven Configuration	Mounting Type	Package / Case
Microchip Technology HPFM-00117	IGBT	14.5 V	16 V	Independent	Module	85 °C	-40 °C	30 A	30 A	600 ns	350 ns	Non-Inverting	1	Half-Bridge	Chassis Mount	Module

Catalog

AgileSwitch HPM Fiber Master - 3300V

Key Features

- 2-level turn-off time and voltage level

- Soft Shut Down (SSD) time and voltage level

- Desaturation time and voltage level

- Master-Slave capability for parallel operation

- Gate drive voltage +15V/-10V

- Peak gate current +/-30A

- Suitable for IGBTs up to 3300V

- Power supply under-voltage lockout (UVLO)

- 1 X 7W output power

Description

The AgileSwitch HPFM-HPM Fiber driver provides monitoring and fault reporting information to enable better control and analysis of an IGBT-based power system. The HPFM provides up to 30 Amps of peak current at an operating frequency up to 15 kHz. The driver includes an isolated DC/DC converter and provides a single fault that is reported via the dual-channel fiber I/O. All AgileSwitch drivers use automotive temperature grade components and allow for modifying settings of gate resistors and active clamping.
