A2E200 Series

Catalog

AC AXIAL FAN

Part	Material - Blade	Current Rating (Amps)	Bearing Type	Ingress Protection	Size / Dimension	Size / Dimension [diameter]	Termination	Features	Power (Watts)	Approval Agency	RPM	Fan Type	Width [y]	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Air Flow	Air Flow
ebm-papst Inc. A2E200-AA19-51	Steel	0.7 A	Ball	IP44	Round	195 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	82 W	CE UL	2900 RPM	Tubeaxial	74.5 mm	115 VAC

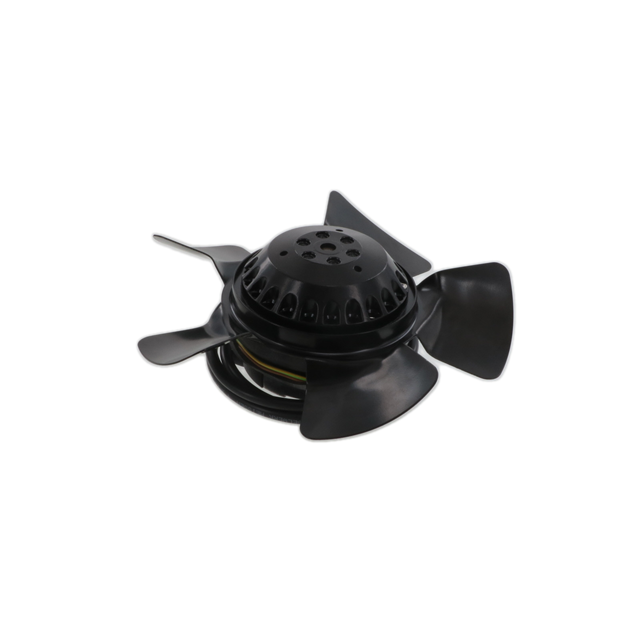

ebm-papst Inc. A2E200-AF02-53	Steel	0.28 A	Ball	IP44	Round	195 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)		CE UL	3120 RPM	Tubeaxial		230 VAC	0.803 in H2O	200 Pa	75 ░C	-25 °C	70 mm

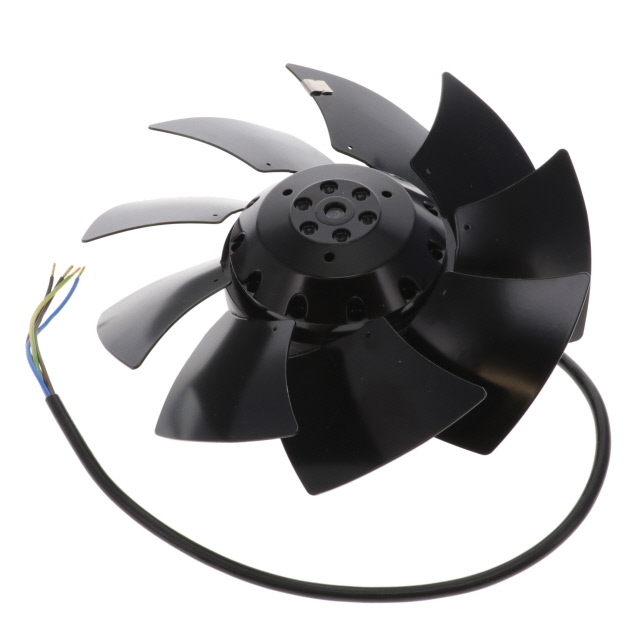

ebm-papst Inc. A2E200-AH38-01	Steel	0.34 A	Ball	IP44	Round	197 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	78 W	CCC CE EAC	2900 RPM	Tubeaxial	65.5 mm	230 VAC	0.602 in H2O	150 Pa	65 °C	-25 °C		-25 °C	65 °C	65 dB	14.68 m³/min	542.2 CFM

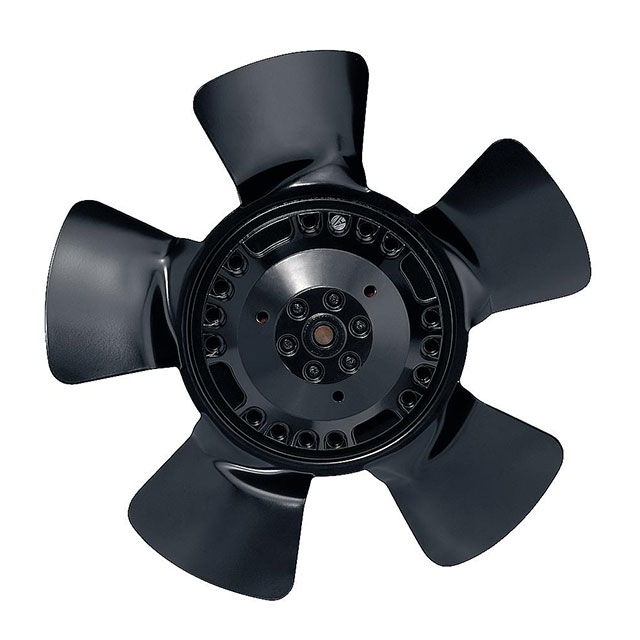

ebm-papst Inc. A2E200-AF02-54	Steel	0.28 A	Ball	IP44	Round	195 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)			3120 RPM	Tubeaxial		230 VAC	0.803 in H2O	200 Pa	75 ░C	-25 °C	70 mm

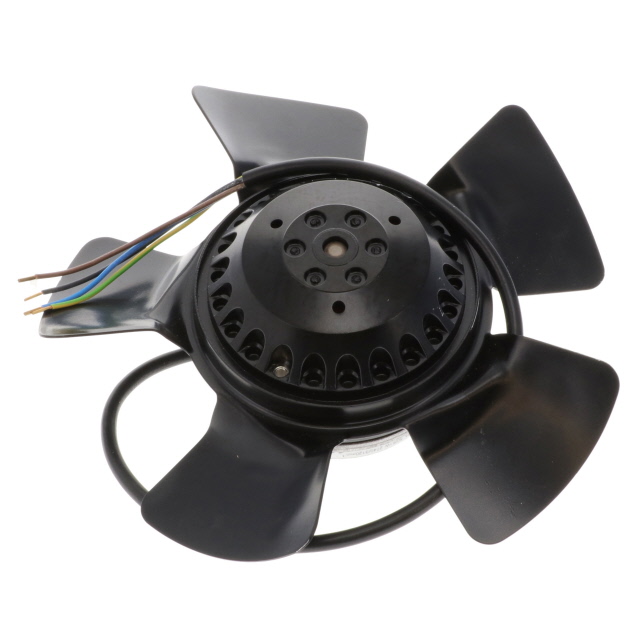

ebm-papst Inc. A2E200-AF02-02	Steel	0.28 A	Ball	IP44	Round	195 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)		CCC CE EAC	3120 RPM	Tubeaxial		230 VAC	0.803 in H2O	200 Pa	75 ░C	-25 °C	70 mm				13.69 m³/min	488.9 CFM
ebm-papst Inc. A2E200-AH38-70	Steel	390 mA	Ball	IP44	Round	197 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	90 W	CE CSA UL	2900 RPM	Tubeaxial	65.5 mm	230 VAC	0.6 in H2O	149.5 Pa	65 °C	-25 °C		-25 °C	65 °C
ebm-papst Inc. A2E200-AI38-01	Steel	0.34 A	Ball	IP44	Round	197 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	78 W	CCC CE EAC	2900 RPM	Tubeaxial	64 mm	230 VAC	0.602 in H2O	150 Pa	65 °C	-25 °C		-25 °C	65 °C		16.33 mł/min	583.1 CFM

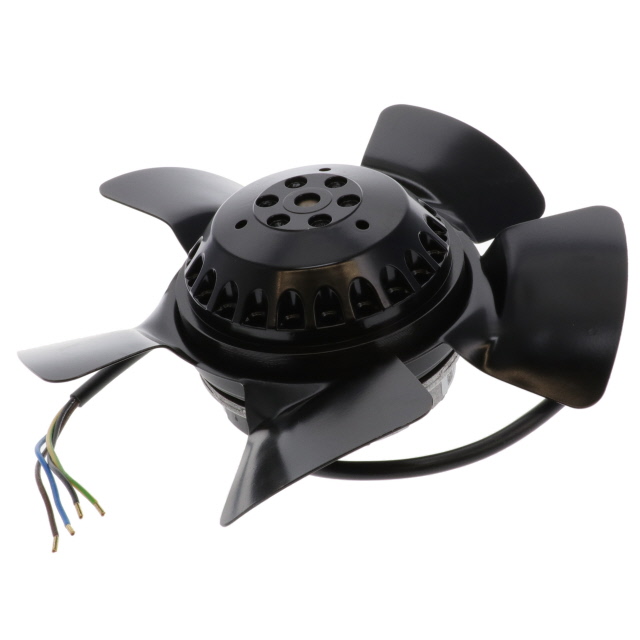

ebm-papst Inc. A2E200-AF02-01	Steel	0.28 A	Ball	IP44	Round	195 mm	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)		CCC CE EAC	3120 RPM	Tubeaxial	70.5 mm	230 VAC	0.803 in H2O	200 Pa	75 ░C	-25 °C				65 dB	12.2 m³/min	435.9 CFM
