FSE Series

Manufacturer: OptiFuse

Catalog

FUSE GLASS 3A 250VAC 2AG

Part	Melting I˛t	Breaking Capacity @ Rated Voltage	Package / Case [x]	Package / Case	Package / Case [y]	Response Time	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Fuse Type	Approval Agency	Voltage Rating - AC	Mounting Type	Melting I²t	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]
OptiFuse FSE-3A	6.546	100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	cULus UL 248	250 V	Requires Holder	6.546	3 A

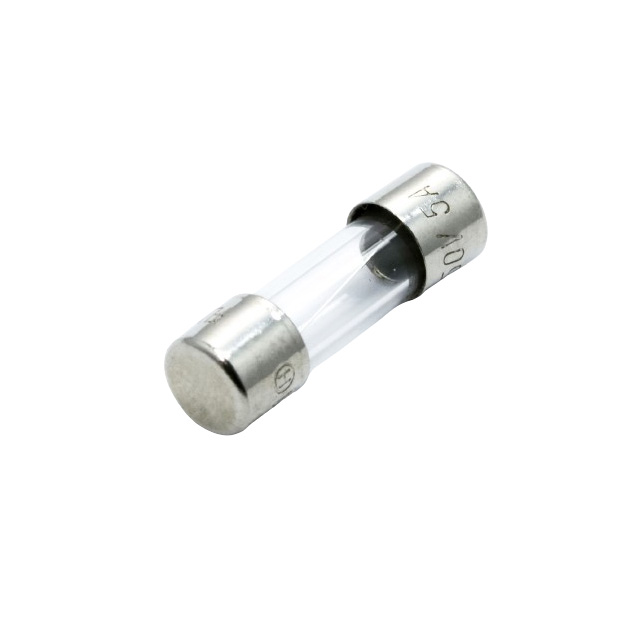

OptiFuse FSE-1.25A	0.626	100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	cULus UL 248	250 V	Requires Holder		1.25 A
OptiFuse FSE-750MA	0.275	100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	cULus UL 248	250 V	Requires Holder	0.275	750 mA
OptiFuse FSE-2A	3.436	100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	cULus UL 248	250 V	Requires Holder	3.436 I²t	2 A
OptiFuse FSE-12A		100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	UL 248	250 V	Requires Holder		12 Amps
OptiFuse FSE-500MA	0.109	100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	cULus UL 248	250 V	Requires Holder	0.109	0.5 A
OptiFuse FSE-15A		100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	UL 248	250 V	Requires Holder		15 A

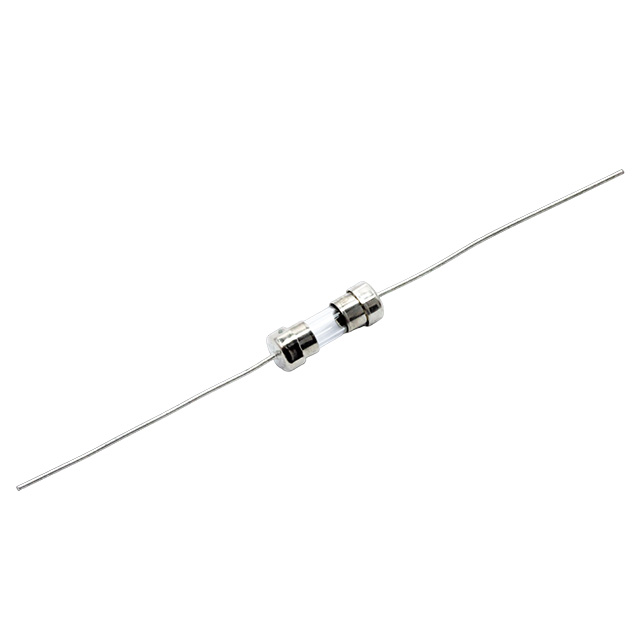

OptiFuse FSE-P-2A	3.436	100 A	5 mm	2AG	15 mm	Fast Blow			0.197 in	5 mm	-55 C	125 °C	Cartridge Glass	cULus UL 248	250 V	Through Hole		2 A	0.63 in	16 mm
OptiFuse FSE-P-3.5A	9.454	100 A	5 mm	2AG	15 mm	Fast Blow			0.197 in	5 mm	-55 C	125 °C	Cartridge Glass	cULus UL 248	250 V	Through Hole	9.454	3.5 A	0.63 in	16 mm
OptiFuse FSE-8A	65.46	100 A	5 mm	2AG	15 mm	Fast Blow	15 mm	0.591 in	0.177 "	4.5 mm	-55 C	125 °C	Cartridge Glass	UL 248	250 V	Requires Holder	65.46 I²t	8 A
