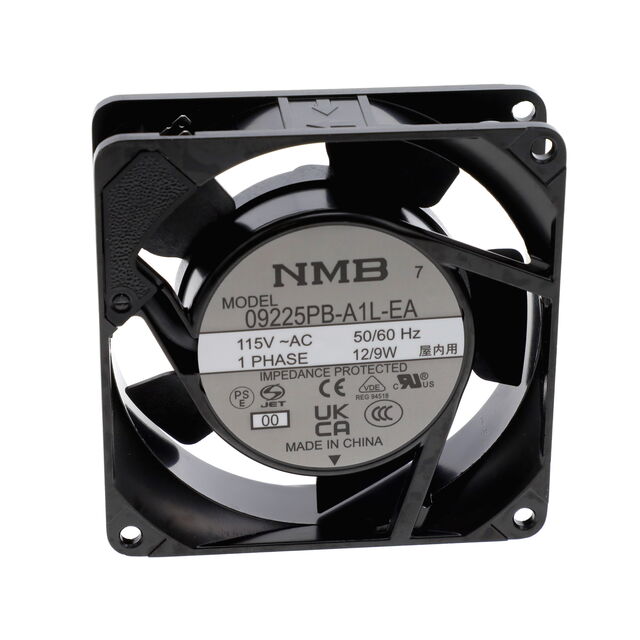

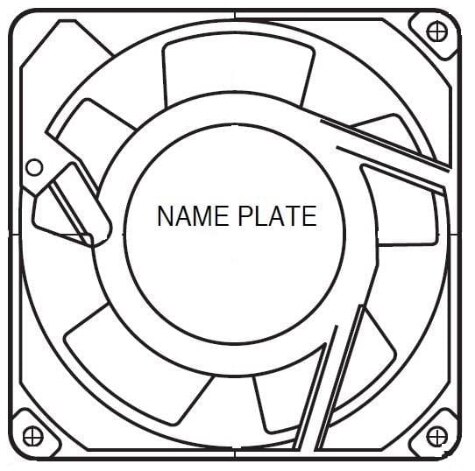

09225PB Series
AC Fans AC Axial Fan, 92x92x25mm, 200VAC, 34.5CFM, Flange Mount, Lead Wires
Manufacturer: NMB TECHNOLOGIES
Catalog
AC Fans AC Axial Fan, 92x92x25mm, 200VAC, 34.5CFM, Flange Mount, Lead Wires
Beta
⌘K
AC Fans AC Axial Fan, 92x92x25mm, 200VAC, 34.5CFM, Flange Mount, Lead Wires
AC Fans AC Axial Fan, 92x92x25mm, 200VAC, 34.5CFM, Flange Mount, Lead Wires
AC Fans AC Axial Fan, 92x92x25mm, 200VAC, 34.5CFM, Flange Mount, Lead Wires
| Part | Lifetime @ Temp. | Material - Blade | Material - Frame | Features | Fan Type | Power (Watts) | Air Flow | Air Flow | Size / Dimension [y] | Size / Dimension [x] | Noise | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Termination | Bearing Type | RPM | Width [y] | Current Rating (Amps) | Weight | Weight | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 100000 Hrs | Plastic | Aluminum | Auto Restart | Tubeaxial | 10 W | 35 CFM | 0.98 m³/min | 92.5 mm | 92.5 mm | 38 dB(A) | 200 VAC | 70 °C | -10 °C | 59.8 Pa | 0.24 in H2O | 2 Wire Leads | Ball | 3100 RPM | 25 mm | ||||
 NMB TECHNOLOGIES | 50000 Hrs | Polycarbonate (PC) | Aluminum | Tubeaxial | 10 W | 34.5 CFM | 0.966 mł/min | 92.5 mm | 92.5 mm | 38 dB(A) | 100 VAC | 70 °C | -10 °C | 2 Wire Leads | Ball | 3100 RPM | 25 mm | 150 mA | 0.604 lb | 273.97 g | ||||
NMB TECHNOLOGIES | 100000 Hrs | Plastic | Aluminum | Tubeaxial | 8 W | 28 CFM | 0.784 m³/min | 92.5 mm | 92.5 mm | 35 dB | 240 VAC | 70 °C | -10 °C | 39.8 Pa | 0.16 in H2O | Ball | 2500 RPM | 25 mm | 50 mA | 2 | ||||
NMB TECHNOLOGIES | 50000 Hrs | Polycarbonate (PC) | Aluminum | Tubeaxial | 10 W | 34.5 CFM | 0.966 mł/min | 92.5 mm | 92.5 mm | 39 dB(A) | 220 VAC | 70 °C | -10 °C | 2 Wire Leads | Ball | 3100 RPM | 25 mm | 0.604 lb | 273.97 g | |||||
 NMB TECHNOLOGIES | 100000 Hrs | Plastic | Aluminum | Tubeaxial | 9 W | 34.5 CFM | 0.966 mł/min | 92.5 mm | 92.5 mm | 38 dB(A) | 115 VAC | 70 °C | -10 °C | 59.8 Pa | 0.24 in H2O | Ball | 3100 RPM | 25 mm | 2 | |||||
 NMB TECHNOLOGIES | 100000 Hrs | Plastic | Aluminum | Auto Restart | Tubeaxial | 10 W | 35 CFM | 0.98 m³/min | 92.5 mm | 92.5 mm | 38 dB(A) | 100 VAC | 70 °C | -10 °C | 59.8 Pa | 0.24 in H2O | 2 Wire Leads | Ball | 3100 RPM | 25 mm | 150 mA | |||
NMB TECHNOLOGIES | 100000 Hrs | Plastic | Aluminum | Tubeaxial | 6 W | 20 CFM | 0.56 m³/min | 92.5 mm | 92.5 mm | 26 dB | 230 VAC | 70 °C | -10 °C | 19.9 Pa | 0.08 in H2O | Ball | 1800 RPM | 25 mm | 40 mA | 2 |
