WAVE-45 Series

Catalog

LOW PROFILE HEAT SINK BGA CHIPSET ALUMINUM TOP MOUNT ROHS COMPLIANT: YES

Part	Package Cooled	Material	Type	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Length [x]	Length [x]	Material Finish	Shape [custom]	Shape [custom]	Attachment Method	Width	Width

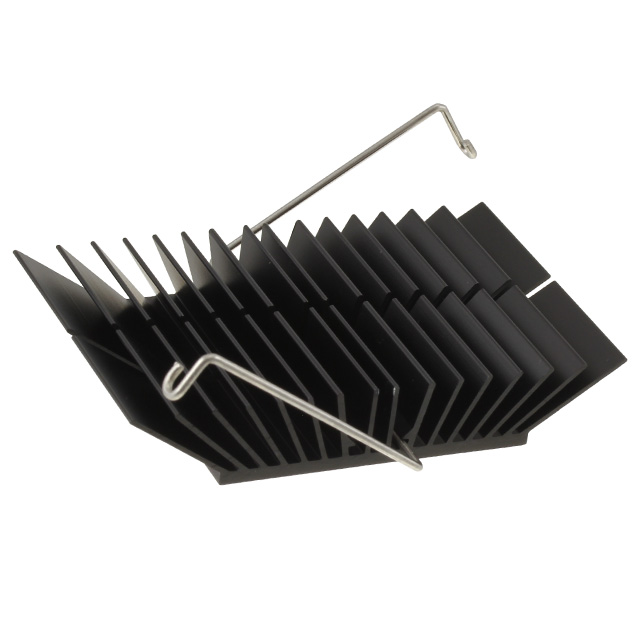

Wakefield Thermal Solutions WAVE-45-12	BGA	Aluminum Alloy	Board Level	2.96 °C/W	0.472 in	12 mm	1.772 in	45 mm	Black Anodized	Angled Fins	Square	Clip	1.772 in	45 mm
Wakefield Thermal Solutions WAVE-45-12	BGA	Aluminum Alloy	Board Level	2.96 °C/W	0.472 in	12 mm	1.772 in	45 mm	Black Anodized	Angled Fins	Square	Clip	1.772 in	45 mm
