TPW2900ENH Series
12V - 300V MOSFETs, N-ch MOSFET, 200 V, 0.029 Ω@10V, DSOP Advance, U-MOSⅧ-H
Manufacturer: Toshiba Semiconductor and Storage
Catalog
12V - 300V MOSFETs, N-ch MOSFET, 200 V, 0.029 Ω@10V, DSOP Advance, U-MOSⅧ-H
Beta
⌘K
12V - 300V MOSFETs, N-ch MOSFET, 200 V, 0.029 Ω@10V, DSOP Advance, U-MOSⅧ-H
12V - 300V MOSFETs, N-ch MOSFET, 200 V, 0.029 Ω@10V, DSOP Advance, U-MOSⅧ-H
12V - 300V MOSFETs, N-ch MOSFET, 200 V, 0.029 Ω@10V, DSOP Advance, U-MOSⅧ-H
| Part | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Mounting Type | Operating Temperature | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds | Technology | Vgs (Max) | Supplier Device Package | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs [Max] | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

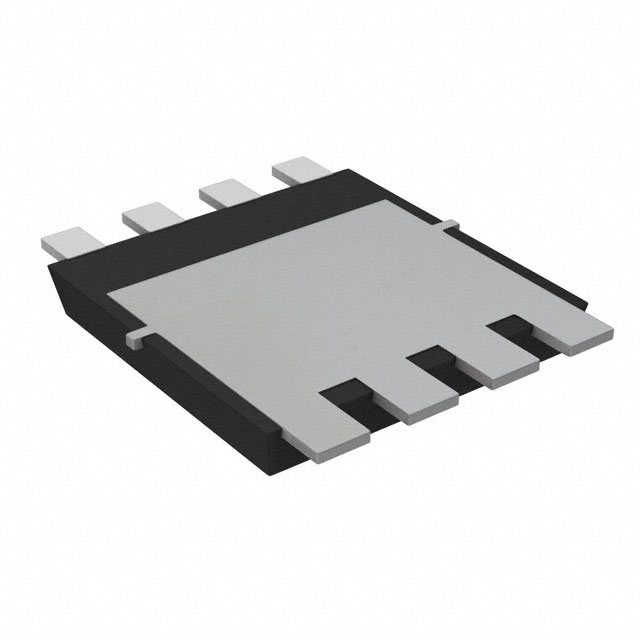

 Toshiba Semiconductor and Storage | 33 A | 200 V | 29 mOhm | Surface Mount | 150 °C | 8-PowerVDFN | 10 V | 2200 pF | MOSFET (Metal Oxide) | 20 V | 8-DSOP Advance | 142 W 800 mW | 22 nC | N-Channel |
