35T Series

Ferrite Toroids / Ferrite Rings FT,MNZN,EC

Manufacturer: Laird Technologies EMI

Catalog

Ferrite Toroids / Ferrite Rings FT,MNZN,EC

Catalog

Ferrite Toroids / Ferrite Rings FT,MNZN,EC

Part	Height [z]	Height	Inductance Factor (Al)	Effective Area (Ae) mm²	Tolerance	Finish	Core Type	Effective Length (le) mm [custom]	Gap	Initial Permeability (µi)	Diameter [diameter]	Diameter [diameter]	Material	Core Factor (ΣI/A) mm⁻¹	Height	Effective Length (le) mm	Effective Magnetic Volume (Ve) mm³	Height [z]	Effective Area (Ae) mm² [custom]	Effective Area (Ae) mm² [custom]	Effective Length (le) mm [x]
Laird Technologies EMI 35T0190-10P	0.051 in	1.29 mm	949 nH	1.54 mm²	20 %	Parylene	Toroid	10.2 mm	Ungapped	5000	4.85 mm	0.191 in	35	6.62 mm⁻¹
Laird Technologies EMI 35T0119-00P		1.27 mm	1.112 µH	1.06 mm²	20 %	Parylene	Toroid		Ungapped	5000	3.05 mm	0.12 in	35	5.651 mm⁻¹	0.05 "	5.988 mm	6.345 mm³

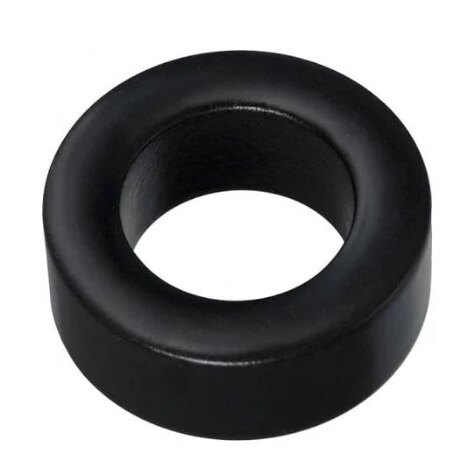

Laird Technologies EMI 35T0870-00H
Laird Technologies EMI 35T0135-10P		2.08 mm	1.351 µH	1.64 mm²	20 %	Parylene	Toroid	7.62 mm	Ungapped	5000	3.45 mm	0.136 in	35	4.65 mm⁻¹	0.082 "
Laird Technologies EMI 35T0231-00P	0.061 in		991 nH		20 %	Parylene	Toroid		Ungapped	5000							26.775 mm³	1.55 mm
Laird Technologies EMI 35T1417-00H	0.434 in		4.456 µH		20 %	Epoxy	Toroid		Ungapped	5000	37.27 mm	1.467 in						11.02 mm
Laird Technologies EMI 35T0394-00H	0.203 in		3.466 µH		20 %	Epoxy	Toroid	21.79 mm	Ungapped	5000	10.15 mm	0.4 in	35					5.15 mm	12.02 mm²
Laird Technologies EMI 35T0231-30P	0.101 in				20 %	Parylene	Toroid			5000								2.56 mm
Laird Technologies EMI 35T0501-00H		4.93 mm	2.75 µH		20 %	Epoxy	Toroid		Ungapped	5000	12.85 mm	0.506 in	35	2.09 mm⁻¹	0.194 in					14.01 mm²	29.32 mm

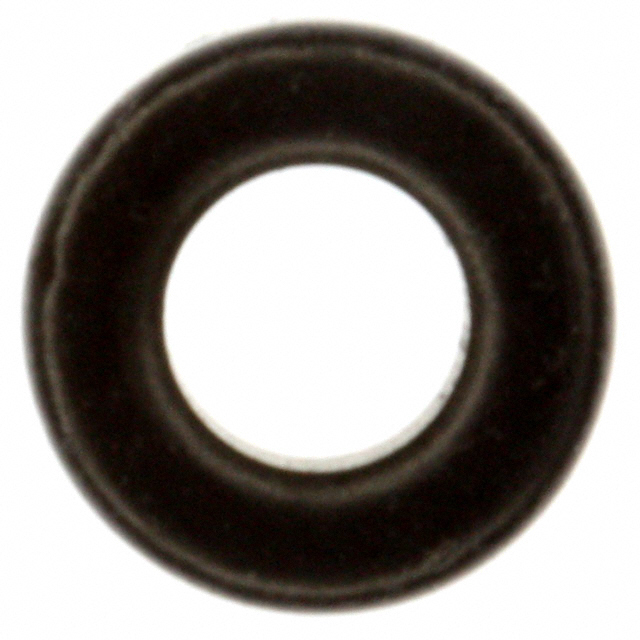

Laird Technologies EMI 35T0231-20P	0.126 in				20 %	Coated	Toroid			5000								3.2 mm
