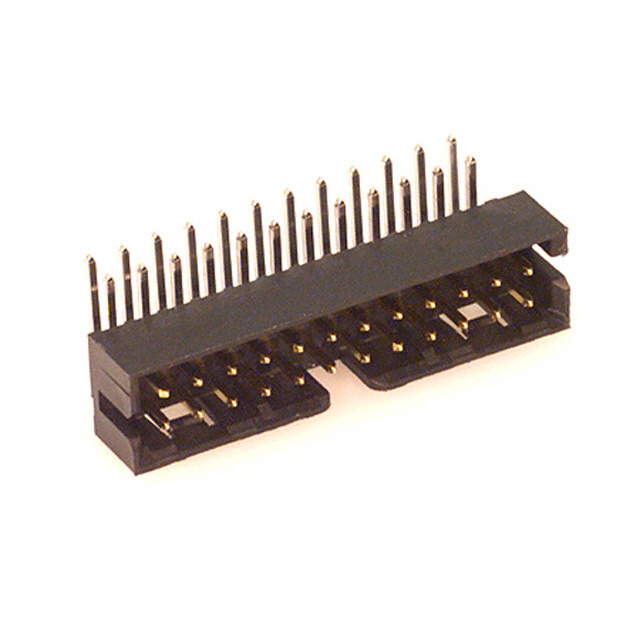

087833 Series

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Right-Angle, Through Hole, 38 Circuits, Gold (Au) Flash Plating, without PCB Locator, without Locking Window, Center Polarization Slot, Tube

Manufacturer: Molex

Catalog

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Right-Angle, Through Hole, 38 Circuits, Gold (Au) Flash Plating, without PCB Locator, without Locking Window, Center Polarization Slot, Tube

Part	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Material	Termination	Features	Contact Length - Post	Contact Length - Post	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Connector Type	Contact Finish - Mating	Contact Finish - Post	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Material Flammability Rating	Shrouding	Number of Positions Loaded	Number of Rows	Applications	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]
Molex 0878331421	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Keying Slot	2.16 mm	0.085 in	Phosphor Bronze	Latch Holder	30 Áin	0.76 Ám	Board to Board Cable	Header	Gold	Tin	14	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm
Molex 0878331436	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Pick and Place Polarizing Key	3.5 mm	0.138 in	Phosphor Bronze	Latch Holder	30 Áin	0.76 Ám	Board to Board Cable	Header	Gold	Tin	14	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm
Molex 0878331621	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Keying Slot	2.16 mm	0.085 in	Phosphor Bronze	Latch Holder	30 Áin	0.76 Ám	Board to Board Cable	Header	Gold	Tin		105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	16
Molex 0878332621	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Keying Slot	2.16 mm	0.085 in	Phosphor Bronze	Latch Holder	30 Áin	0.76 Ám	Board to Board Cable	Header	Gold	Tin	26	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm
Molex 0878333020	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Keying Slot	2.16 mm	0.085 in	Phosphor Bronze	Latch Holder	15 µin	0.38 µm	Board to Board Cable	Header	Gold	Tin	30	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm

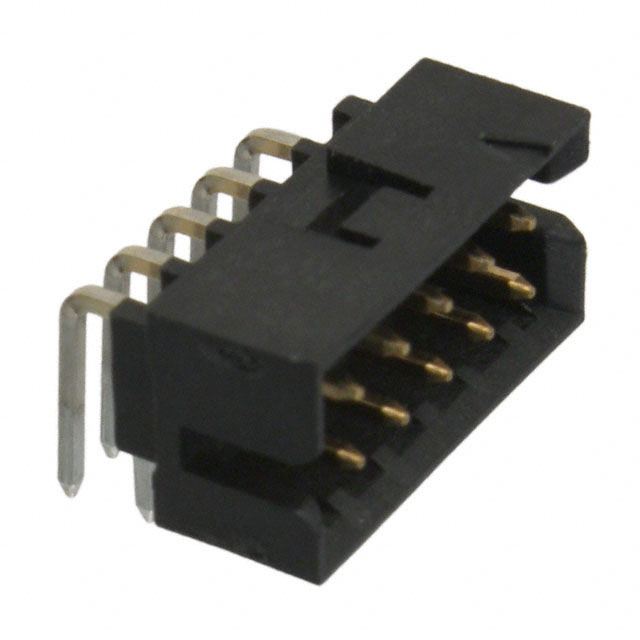

Molex 0878331019	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	Keying Slot	2.16 mm	0.085 in	Phosphor Bronze	Push-Pull	2 µin	0.051 µm	Board to Board Cable	Header	Gold	Tin	10	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm

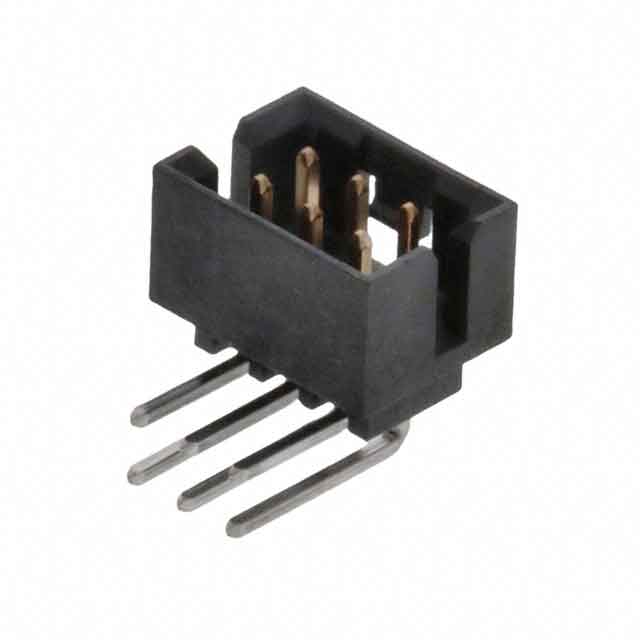

Molex 0878330661	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder				Phosphor Bronze	Latch Holder	15 µin	0.38 µm	Board to Board Cable	Header	Gold	Tin	6	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm		3.18 mm	0.125 in
Molex 0878333819	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Keying Slot	2.16 mm	0.085 in	Phosphor Bronze	Latch Holder	2 µin	0.051 µm	Board to Board Cable	Header	Gold	Tin	38	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm
Molex 0878336020	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Keying Slot			Phosphor Bronze	Push-Pull	15 µin	0.38 µm	Board to Board Cable	Header	Gold	Tin	12	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm		3.18 mm	0.125 in
Molex 0878332420	0.141 in	3.6 mm	Male Pin	Glass Filled Nylon Polyamide (PA)	Solder	Keying Slot	2.16 mm	0.085 in	Phosphor Bronze	Latch Holder	15 µin	0.38 µm	Board to Board Cable	Header	Gold	Tin	24	105 ░C	-55 °C	Black	74.8 Áin	1.9 Ám	Square	0.079 in	2 mm	Through Hole Right Angle	UL94 V-0	Shrouded - 4 Wall	All	2	Automotive General Purpose Telecommunications	0.079 in	2 mm
