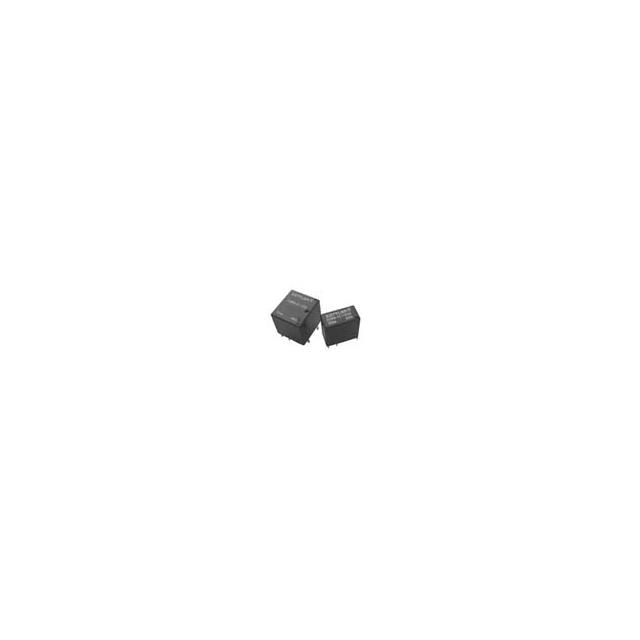

AZ9891J Series
Manufacturer: American Zettler
Beta
⌘K
RELAY AUTOMOTIVE DPDT 30A 12V
| Part | Contact Material | Coil Power | Coil Resistance | Coil Voltage | Contact Form | Coil Type | Must Operate Voltage | Termination Style | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Must Release Voltage | Features | Release Time | Coil Current | Switching Voltage [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | Silver Tin Oxide (AgSnO) | 800 mW | 180 Ohms | 12 VDC | DPDT (2 Form C) | Non Latching | 7.2 VDC | PC Pin | 30 A | 85 °C | -40 C | 10 ms | 1 VDC | Sealed - Epoxy | 10 ms | 66.7 mA | 16 VDC | Through Hole |
American Zettler | Silver Tin Oxide (AgSnO) | 800 mW | 180 Ohms | 12 VDC | SPDT (1 Form C) | Non Latching | 7.2 VDC | PC Pin | 30 A | 85 °C | -40 C | 10 ms | 1 VDC | Sealed - Epoxy | 10 ms | 66.7 mA | 16 VDC | Through Hole |
American Zettler | Silver Tin Oxide (AgSnO) | 640 mW | 225 Ohms | 12 VDC | SPDT (1 Form C) | Non Latching | 6.5 VDC | PC Pin | 30 A | 85 °C | -40 C | 10 ms | 1 VDC | Sealed - Epoxy | 10 ms | 53.3 mA | 16 VDC | Through Hole |
