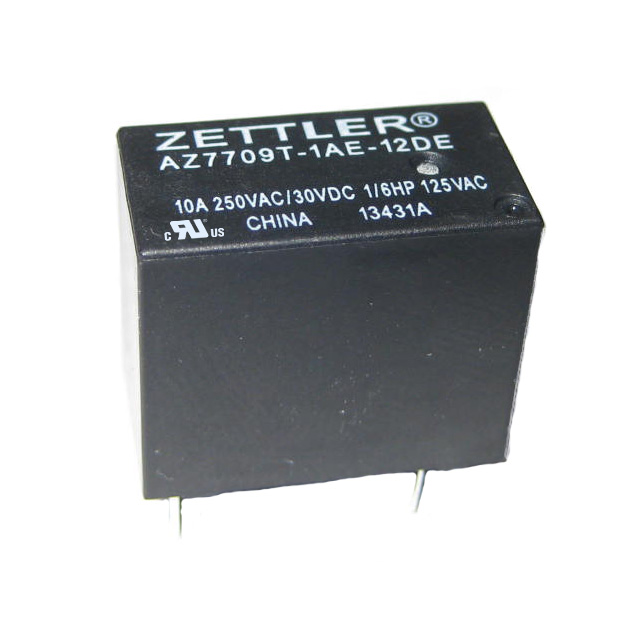

AZ7709-1A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GENERAL PURPOSE SPST 5A 6V
| Part | Coil Resistance | Contact Material | Coil Type | Coil Insulation | Coil Current | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Contact Form | Switching Voltage [Max] | Contact Rating (Current) | Mounting Type | Must Operate Voltage | Approval Agency | Relay Type | Operate Time | Release Time | Must Release Voltage | Coil Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 80 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | Class F | 0.075 A | PC Pin | -40 C | 105 ░C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 4.2 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.3 VDC | ||
American Zettler | 1.62 kOhms | Silver Tin Oxide (AgSnO) | Non Latching | 11.1 mA | PC Pin | -40 C | 85 °C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 13.5 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.9 VDC | 18 VDC | Sealed - Fully | |
American Zettler | 45 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | Class F | 66.7 mA | PC Pin | -40 C | 105 ░C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 2.25 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.15 VDC | Sealed - Fully | |
American Zettler | 45 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | 66.7 mA | PC Pin | -40 C | 85 °C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 2.25 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.15 VDC | |||
American Zettler | 20 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | Class F | 0.15 A | PC Pin | -40 C | 105 ░C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 2.1 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.15 VDC | Sealed - Fully | |
American Zettler | 20 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | 0.15 A | PC Pin | -40 C | 85 °C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 2.1 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.15 VDC | Sealed - Fully | ||
American Zettler | 125 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | Class F | 40 mA | PC Pin | -40 C | 105 ░C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 3.75 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.25 VDC | 5 VDC | |
American Zettler | 80 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | 0.075 A | PC Pin | -40 C | 85 °C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 4.2 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.3 VDC | |||
American Zettler | 80 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | 0.075 A | PC Pin | -40 C | 85 °C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 4.2 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.3 VDC | Sealed - Fully | ||
 American Zettler | 320 Ohms | Silver Tin Oxide (AgSnO) | Non Latching | 0.0375 A | PC Pin | -40 C | 85 °C | 150 W 1250 VA | SPST-NO (1 Form A) | 30 VDC 250 VAC | 5 A | Through Hole | 8.4 VDC | CUR TUV UL | General Purpose | 8 ms | 4 ms | 0.6 VDC | 12 VDC | Sealed - Fully |
