1800 MHzTO 2700 MHz, 1 W RF Driver Amplifier
Key Features
• Operation from 1800 MHz to 2700 MHz
• Gain of 24.3 dB at 2140 MHz
• OIP3 of 45.5 dBm at 2140 MHz
• P1dB of 30.8 dBm at 2140 MHz
• Noise figure of 4.7 dB at 2140 MHz
• Power supply: 5 V
• Power supply current: 362 mA typical
• Internal active biasing
• Fast power-up/power-down function
• Compact 4 mm × 4 mm, 16-lead LFCSP
• ESD rating of ±1 kV (Class 1C)
• Pin-compatible with theADL5605(700 MHz to 1000 MHz)
Description
AI

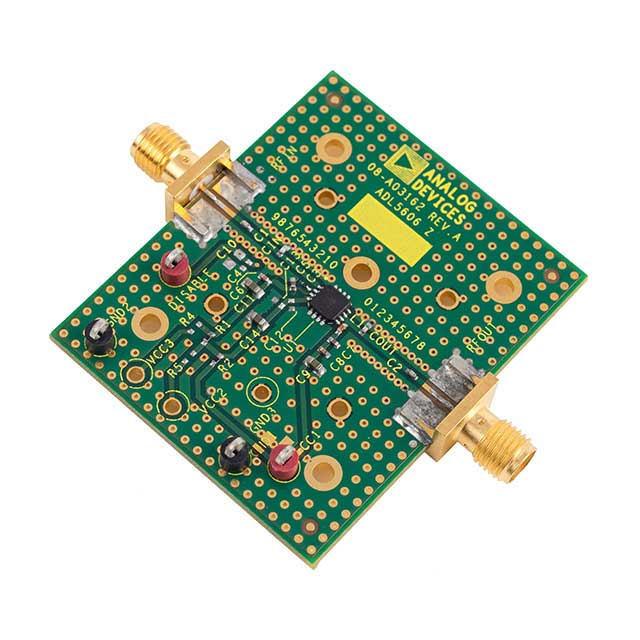

The ADL5606 is a broadband, two-stage, 1 W RF driver amplifier that operates over a frequency range of 1800 MHz to 2700 MHz. The device can be used in a wide variety of wired and wireless applications, including ISM, MC-GSM, W-CDMA, TD-SCDMA, and LTE.The ADL5606 operates on a 5 V supply voltage and a supply current of 362 mA. The driver also incorporates a fast power-up/power-down function for TDD applications, applications that require a power saving mode, and applications that intermittently transmit data.The ADL5606 is fabricated on a GaAs HBT process and is packaged in a compact 4 mm × 4 mm, 16-lead LFCSP that uses an exposed paddle for excellent thermal impedance. The ADL5606 operates from −40°C to +85°C. A fully populated evaluation board tuned to 2140 MHz is also available.ApplicationsWireless infrastructureAutomated test equipmentISM/AMR applications
