TMPW 10 Series

Catalog

AC/DC CONVERTER 15V 10W

Part	Mounting Type	Standard Number	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Type	Applications	Efficiency	Number of Outputs	Voltage - Isolation	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Current - Output (Max) [Max]	Package / Case

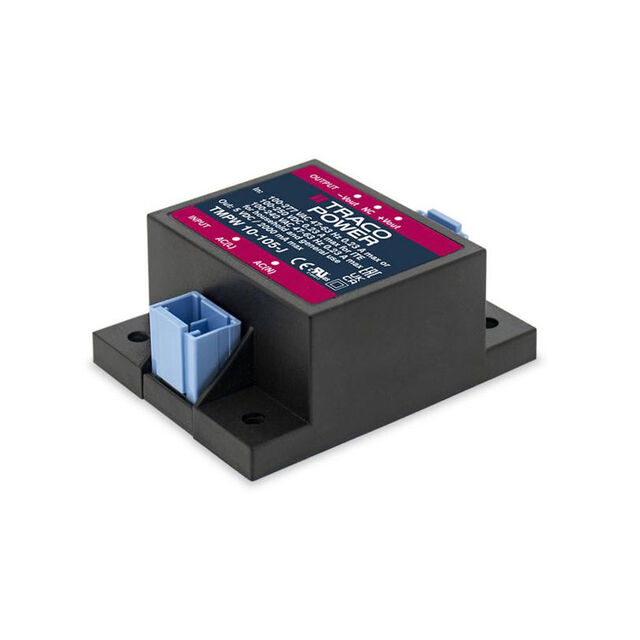

Traco Power TMPW 10-115-J	Chassis Mount	60335-1 62368-1	667 mA	43.2 mm	2.17 "	23.1 mm	55.1 mm	1.7 in	0.91 in	10 W	Enclosed	Household Appliances ITE (Commercial)	86 %	1	4000 V	CB cURus	250 VDC 305 VAC	90 VAC 100 V	15 V
Traco Power TMPW 10-112	Through Hole			27.5 mm	1.46 in	20 mm	37 mm	1.08 in	0.79 in	10 W	Enclosed	Household Appliances ITE (Commercial)	85 %	1		CB cURus	250 VDC 305 VAC	90 VAC 100 V	12 V	833 mA	5-DIP Module

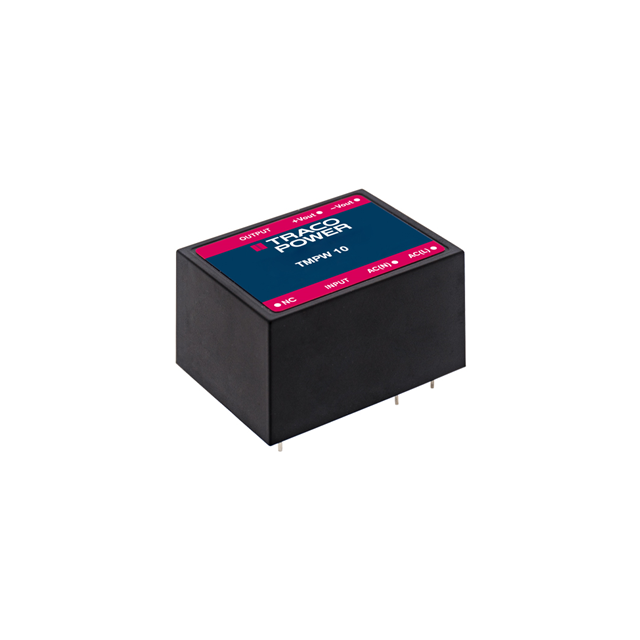

Traco Power TMPW 10-124-J	Chassis Mount	60335-1 62368-1	417 mA	43.2 mm	2.17 "	23.1 mm	55.1 mm	1.7 in	0.91 in	10 W	Enclosed	Household Appliances ITE (Commercial)	86 %	1	4000 V	CB cURus	250 VDC 305 VAC	90 VAC 100 V	24 V

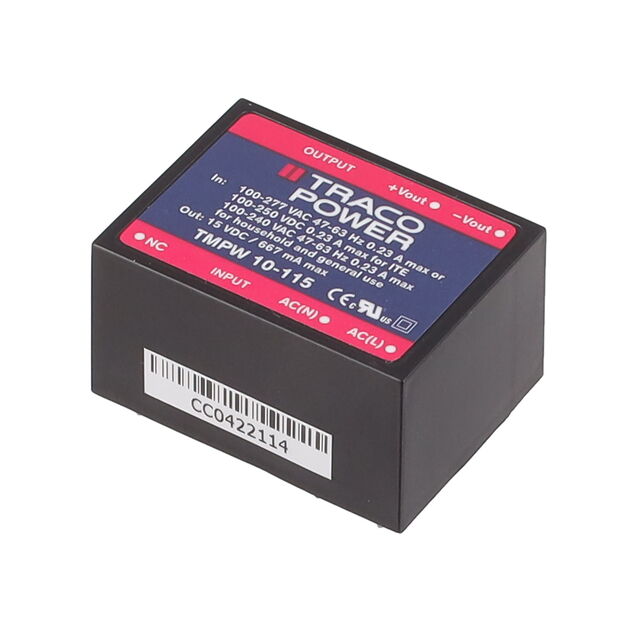

Traco Power TMPW 10-115	Through Hole			27.5 mm	1.46 in	20 mm	37 mm	1.08 in	0.79 in	10 W	Enclosed	Household Appliances ITE (Commercial)	86 %	1		CB cURus	250 VDC 305 VAC	90 VAC 100 V	15 V	667 mA	5-DIP Module
