ADP1720 Series

Catalog

50MA, HIGH VOLTAGE, MICROPOWER LINEAR REGULATOR

Part	Control Features	Protection Features	Current - Output	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Output Type	Supplier Device Package	Number of Regulators	Current - Supply (Max) [Max]	Package / Case	Package / Case [custom]	Package / Case	Voltage - Output (Min/Fixed)	PSRR [Max]	PSRR [Min]	Voltage - Output (Max)	Voltage Dropout (Max) [Max]	Output Type	Board Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Voltage - Output	Regulator Type	Channels per IC
Analog Devices ADP1720ARMZ-3.3-R7	Enable	Over Current Over Temperature	50 mA	Surface Mount	125 °C	-40 °C	Positive	28 V	80 µA	1.81 mOhm	8-MSOP	1	2.115 mA	8-MSOP 8-TSSOP	0.118 in	3 mm	3.3 V
Analog Devices ADP1720TRMZ3.3EPR7	Enable	Over Current Over Temperature	50 mA	Surface Mount	125 °C	-55 °C	Positive	28 V	80 µA	1.81 mOhm	8-MSOP	1	2.115 mA	8-MSOP 8-TSSOP	0.118 in	3 mm	3.3 V
Analog Devices ADP1720TRMZ-EP-R7	Enable	Over Current Over Temperature	50 mA	Surface Mount	125 °C	-55 °C	Positive	28 V	80 µA		8-MSOP	1	2.115 mA	8-MSOP 8-TSSOP	0.118 in	3 mm	1.225 V	90 dB	50 dB	5 V	0.48 V	Adjustable

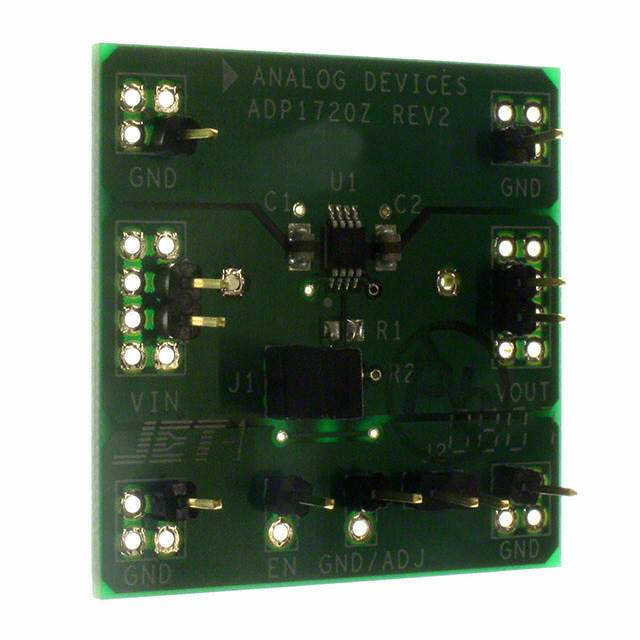

Analog Devices ADP1720-5-EVALZ			50 mA																				Fully Populated	ADP1720	28 V	4 V	Board(s)	5 V	Positive Fixed	1 - Single
Analog Devices ADP1720TRMZ5-EP	Enable	Over Current Over Temperature	50 mA	Surface Mount	125 °C	-55 °C	Positive	28 V	80 µA	1.81 mOhm	8-MSOP	1	2.115 mA	8-MSOP 8-TSSOP	0.118 in	3 mm	5 V	83 dB	50 dB		0.48 V
Analog Devices ADP1720TRMZ5-EP-R7	Enable	Over Current Over Temperature	50 mA	Surface Mount	125 °C	-55 °C	Positive	28 V	80 µA	1.81 mOhm	8-MSOP	1	2.115 mA	8-MSOP 8-TSSOP	0.118 in	3 mm	5 V	83 dB	50 dB		0.48 V
