MIC22705 Series
Manufacturer: Microchip Technology
Beta
⌘K
1MHZ 7A INTEGRATED SWITCH HIGH-EFFICIENCY SYNCH BUCK W/ PRE-BIAS SUPPORT 24 VQFN 4X4X0.9MM T/R ROHS COMPLIANT: YES
| Part | Function | Frequency - Switching | Voltage - Output (Max) [Max] | Voltage - Input (Max) [Max] | Number of Outputs | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Voltage - Output (Min/Fixed) | Supplier Device Package | Topology | Mounting Type | Voltage - Input (Min) [Min] | Output Type | Synchronous Rectifier | Package / Case | Supplied Contents | Voltage - Output | Board Type | Utilized IC / Part | Regulator Topology | Outputs and Type | Outputs and Type | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | Step-Down | 1 MHz | 5.5 V | 5.5 V | 1 | 7 A | -40 °C | 125 ¯C | Positive | 0.7 V | 24-MLF® (4x4) | Buck | Surface Mount | 2.9 V | Adjustable | 24-MLF® 24-VFQFN Exposed Pad | |||||||||

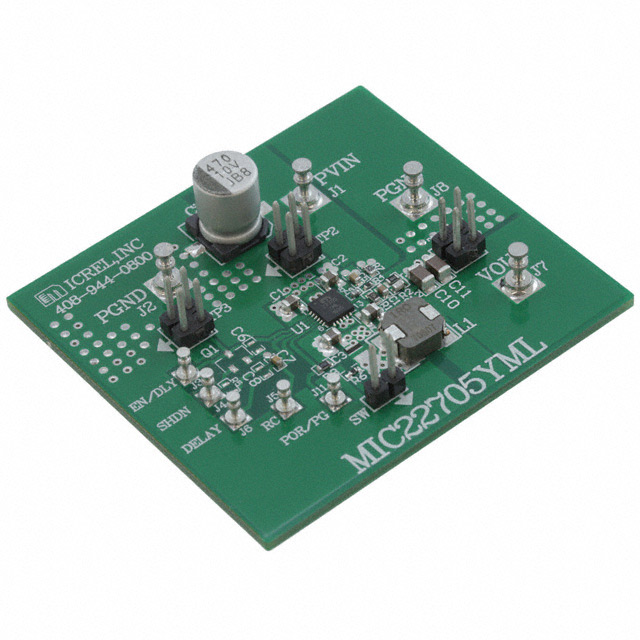

 Microchip Technology | 1 MHz | 7 A | Board(s) | 1.8 V | Fully Populated | MIC22705 | Buck | Non-Isolated | 1 | DC/DC Step Down |
