TF31 Series

Catalog

CONN FFC 10POS 1.00MM SMD

Part	Housing Color	Current Rating (Amps)	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Actuator Color	Material Flammability Rating	Locking Feature	Height Above Board [z]	Height Above Board [z]	Termination	Voltage Rating	Actuator Material	Cable End Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Flat Flex Type	Housing Material	Number of Positions	Connector/Contact Type	Contact Material	Mounting Type	FFC, FCB Thickness	Features

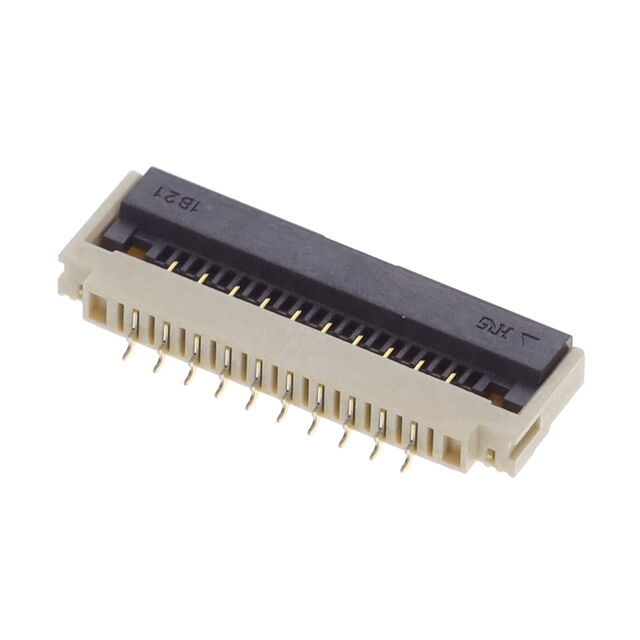

Hirose Electric Co Ltd TF31-10S-1SH(800)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	105 ░C	1 mm	0.039 in	FFC FPC	Liquid Crystal Polymer (LCP)	10	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd TF31-12S-0.5SH(895)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	105 ░C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	12	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd TF31-21S-0.5SH(895)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	105 ░C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	21	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm

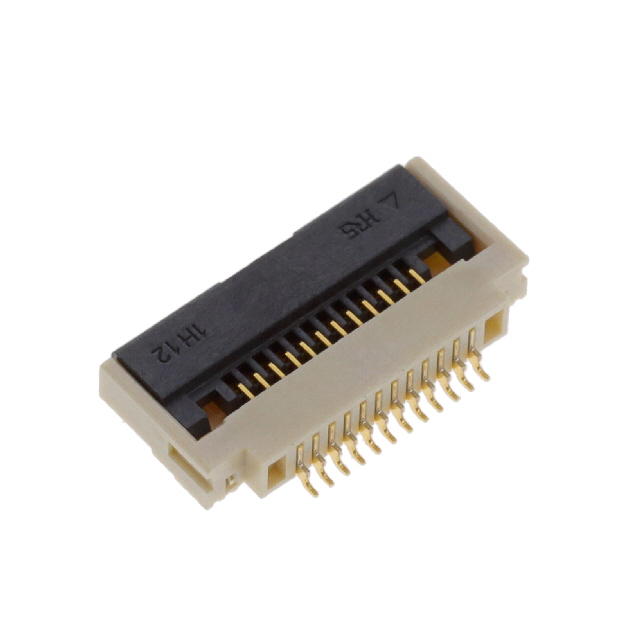

Hirose Electric Co Ltd TF31-12S-0.5SH(800)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	105 ░C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	12	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm

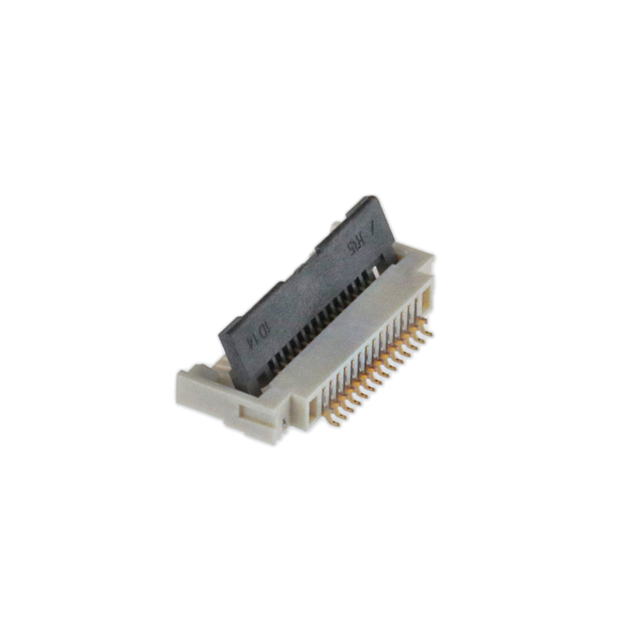

Hirose Electric Co Ltd TF31-14S-0.5SH(800)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	85 °C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	14	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd TF31-16S-0.5SH(895)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	105 ░C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	16	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd TF31-50S-0.5SH(895)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	105 ░C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	50	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm

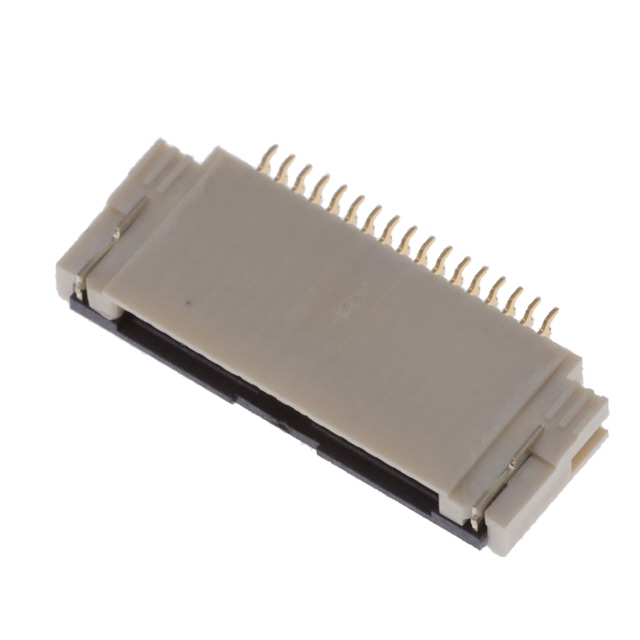

Hirose Electric Co Ltd TF31-17S-0.5SH(800)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	85 °C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)		Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd TF31-4S-0.5SH(895)	Beige	0.5 A	20	1.25 Áin	0.03 Ám	Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Tabbed	Gold	-40 C	105 ░C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	4	Contacts Bottom	Phosphor Bronze	Right Angle Surface Mount	0.3 mm
Hirose Electric Co Ltd TF31-20S-0.5SH(895)	Beige	0.5 A	20			Black	UL94 V-0	Flip Lock	1.75 mm	0.069 in	Solder	50 V	Liquid Crystal Polymer (LCP)	Straight Tapered	Gold	-40 C	105 ░C	0.5 mm	0.02 "	FFC FPC	Liquid Crystal Polymer (LCP)	20	Contacts Bottom	Phosphor Bronze	Surface Mount	0.3 mm	Solder Retention
