1010989 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

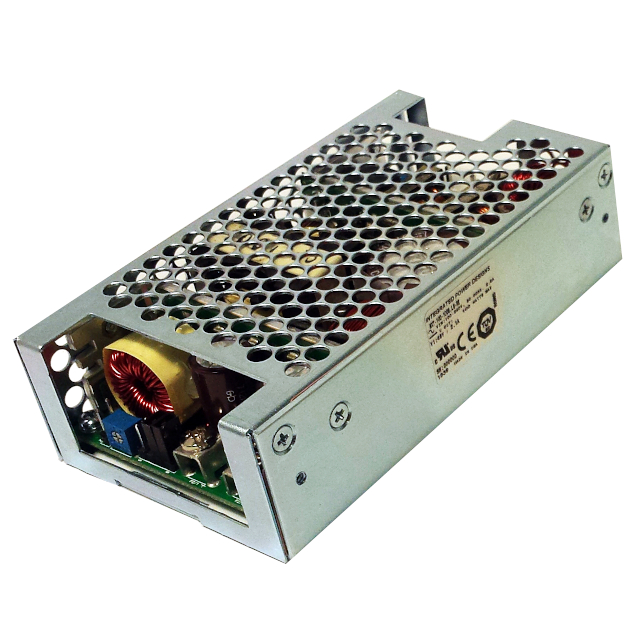

AC/DC CONVERTER 28V 100W
| Part | Size / Dimension | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Number of Outputs | Power (Watts) | Mounting Type | Approval Agency | Standard Number | Type | Current - Output 1 | Efficiency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 2.59 " 4.81 " 33 mm 33.02 mm 65.8 mm 122.2 mm | 70 °C | 0 °C | 28 V | 100 VAC | 240 VAC | ITE (Commercial) Medical | 1 | 100 W | Chassis Mount | CE cURus TUV UKCA | 60601-1; 62368-1 | Enclosed | 3.6 A | 85 % | Adjustable Output Remote Sense Universal Input |
