T322B Series

Manufacturer: KEMET

Catalog

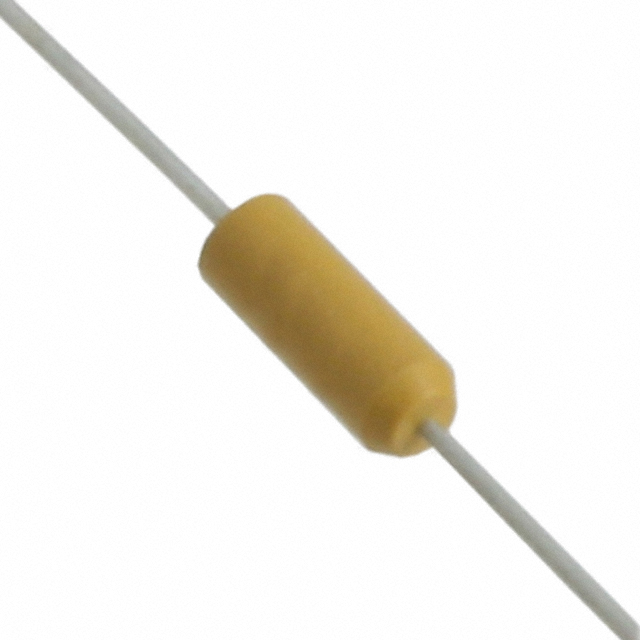

CAP TANT SOLID 1UF 50V 20%( 2.79 X 7.37MM) AXIAL 8 OHM 125°C BAG

Part	Capacitance	Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Manufacturer Size Code	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case	Voltage - Rated	Mounting Type	Features	ESR (Equivalent Series Resistance)
KEMET T322B105M050AT	1 µF	Molded	-55 C	125 °C	20 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	50 VDC	Through Hole	General Purpose
KEMET T322B156K006AS	15 µF	Molded	-55 C	125 °C	10 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	6 VDC	Through Hole	General Purpose	5 Ohm
KEMET T322B156K006AT	15 µF	Molded	-55 C	125 °C	10 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	6 VDC	Through Hole	General Purpose	5 Ohm
KEMET T322B155K035AT	1500 nF	Molded	-55 C	125 °C	10 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	35 V	Through Hole	General Purpose	6 Ohms
KEMET T322B475K015AT	4.7 µF	Molded	-55 C	125 °C	10 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	15 V	Through Hole	General Purpose	5 Ohm
KEMET T322B475M020AS	4.7 µF	Molded	-55 C	125 °C	20 %	B	2.79 mm	0.11 in	0.11 in	2.79 mm	Axial	20 V	Through Hole	General Purpose	5 Ohm
KEMET T322B684K035AS	0.68 µF	Molded	-55 C	125 °C	10 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	35 V	Through Hole	General Purpose	10 Ohm
KEMET T322B105M035AT	1 µF	Molded	-55 C	125 °C	20 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	35 V	Through Hole	General Purpose	8 Ohm
KEMET T322B105K035AT	1 µF	Molded	-55 C	125 °C	10 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	35 V	Through Hole	General Purpose	8 Ohm
KEMET T322B105M035AS	1 µF	Molded	-55 C	125 °C	20 %	B	7.37 mm	0.11 in	0.29 "	2.79 mm	Axial	35 V	Through Hole	General Purpose	8 Ohm
