333-072 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Termination	Card Type	Color	Read Out	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Contact Finish	Number of Positions	Contact Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 333-072-558-208	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Wire Wrap	Non Specified - Dual Edge	Green	Dual	Right Angle Through Hole	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever

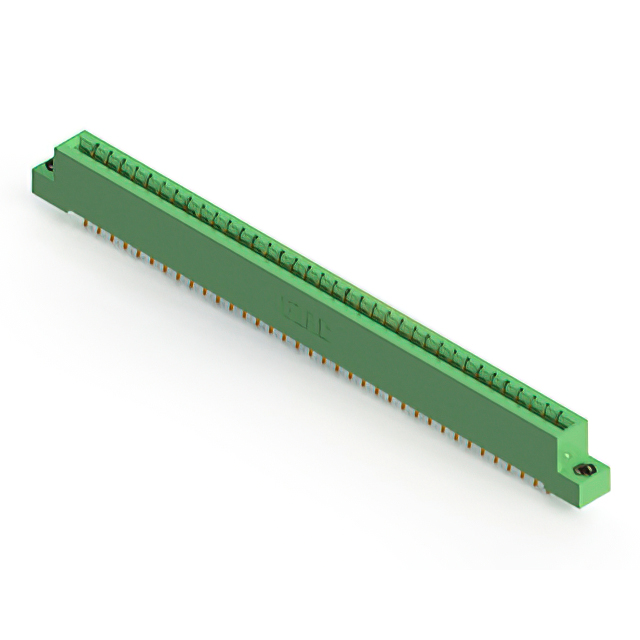

EDAC Inc. 333-072-556-208	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Solder	Non Specified - Dual Edge	Green	Dual	Board Edge Straddle Mount	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever	Card Extender
EDAC Inc. 333-072-558-808	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Wire Wrap	Non Specified - Dual Edge	Green	Dual	Right Angle Through Hole	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever
EDAC Inc. 333-072-544-203	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Wire Wrap	Non Specified - Dual Edge	Green	Dual	Through Hole	-40 C	105 ░C	Floating Bobbin Flush Mount	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever		0.116 "	2.95 mm

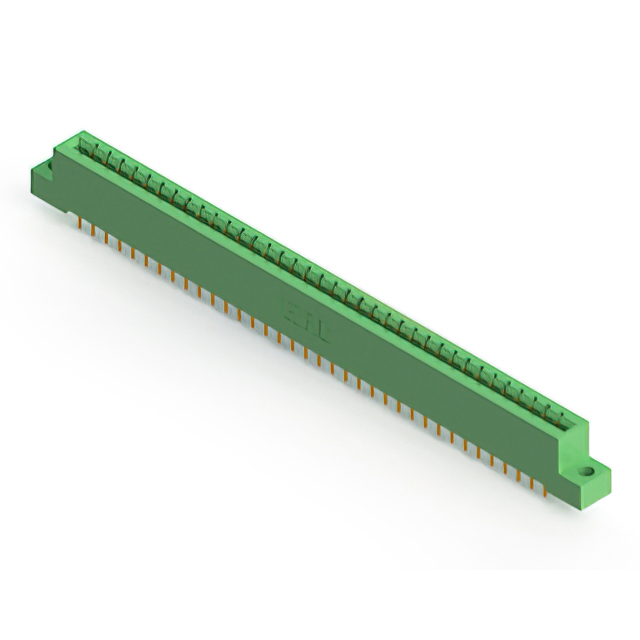

EDAC Inc. 333-072-521-204	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Solder	Non Specified - Dual Edge	Green	Dual	Through Hole	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever		0.156 "	3.96 mm
EDAC Inc. 333-072-558-812	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Wire Wrap	Non Specified - Dual Edge	Green	Dual	Right Angle Through Hole	-40 C	105 ░C	Side Mount Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever		0.128 "	3.25 mm
EDAC Inc. 333-072-556-803	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Solder	Non Specified - Dual Edge	Green	Dual	Board Edge Straddle Mount	-40 C	105 ░C	Floating Bobbin Top Mount Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever	Card Extender	0.116 "	2.95 mm
EDAC Inc. 333-072-558-202	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Solder	Non Specified - Dual Edge	Green	Dual	Right Angle Through Hole	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever		0.128 "	3.25 mm
EDAC Inc. 333-072-542-208	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Wire Wrap	Non Specified - Dual Edge	Green	Dual	Through Hole	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever
EDAC Inc. 333-072-558-803	Polyester Thermoplastic	2	Female	36	0.25 Ám	10 Áin	2	Wire Wrap	Non Specified - Dual Edge	Green	Dual	Right Angle Through Hole	-40 C	105 ░C	Floating Bobbin Top Mount Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Gold	72	Cantilever		0.116 "	2.95 mm
