upm Series

Manufacturer: Nichicon

Catalog

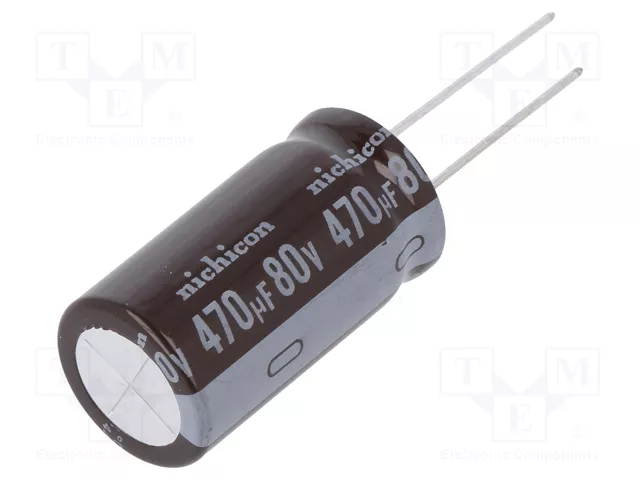

ELECTROLYTIC CAPACITOR, 470 ΜF, 80 V, ± 20%, PC PIN, 5000 HOURS @ 105°C, POLAR

Part	Capacitance	Tolerance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Polarization	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Ratings	Voltage - Rated	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Nichicon UPM1K471MHD	470 µF	20 %	5000 Hrs	1.43 A	Polar	69 mOhms	1.319 in	33.5 mm	AEC-Q200	80 V	0.295 in	7.5 mm	1.79 A	0.63 in	16 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C
Nichicon UPM1H221MHD6	220 µF	20 %	5000 Hrs	670 mA	Polar	80 mOhms	0.669 "		AEC-Q200	50 VDC	0.197 "	5 mm	920 mA	0.492 in	12.5 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C	17 mm
Nichicon UPM1C272MHD6TN	2700 µF	20 %	5000 Hrs	1.97 A	Polar	30 mOhms			AEC-Q200	16 V	0.295 in	7.5 mm	2.19 A	0.63 in	16 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C	27 mm	1.063 in
Nichicon UPM1J181MHD6TN	180 µF	20 %	5000 Hrs	750 mA	Polar	80 mOhms	0.669 "		AEC-Q200	63 V	0.295 in	7.5 mm	1.05 A	0.63 in	16 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C	17 mm
Nichicon UPM1V271MHD6	270 µF	20 %	5000 Hrs	690 mA	Polar	80 mOhms	0.669 "		AEC-Q200	35 V	0.197 "	5 mm	920 mA	0.492 in	12.5 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C	17 mm

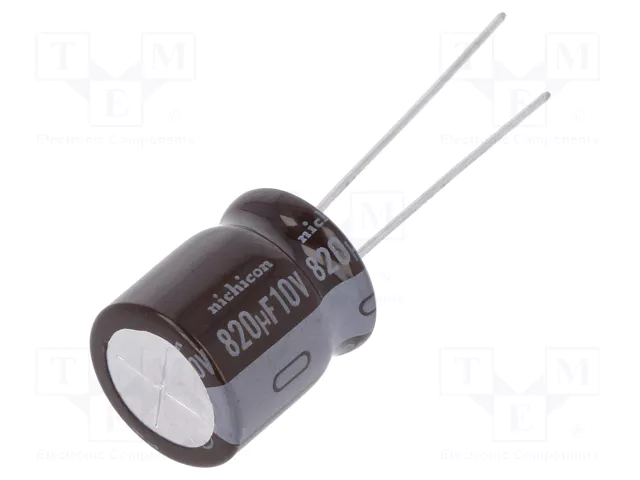

Nichicon UPM1A821MHD6	820 µF	20 %	5000 Hrs	780 mA	Polar	80 mOhms	0.669 "		AEC-Q200	10 V	0.197 "	5 mm	920 mA	0.492 in	12.5 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C	17 mm
Nichicon UPM0J562MHD6TN	5.6 mF	20 %	5000 Hrs	1.78 A	Polar	30 mOhms			AEC-Q200	6.3 VDC	0.295 in	7.5 mm	1.98 A	0.709 in	18 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C			0.866 in	22 mm
Nichicon UPM1V222MHD6	2200 µF	20 %	5000 Hrs	2.44 A	Polar	23 mOhms	1.319 in	33.5 mm	AEC-Q200	35 V	0.295 in	7.5 mm	2.72 A	0.709 in	18 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C

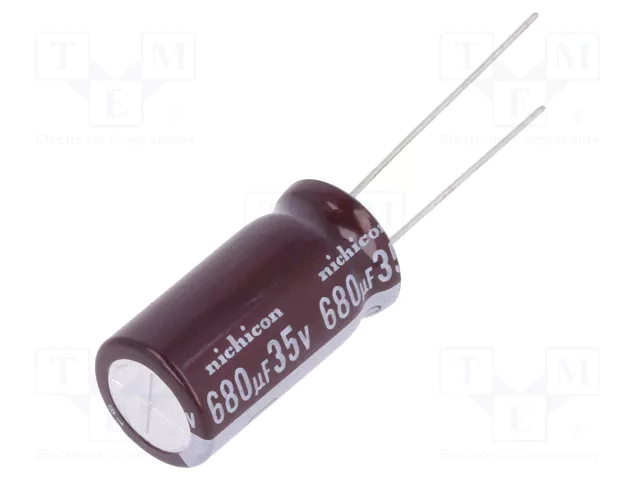

Nichicon UPM1V681MHD	680 µF	20 %	5000 Hrs	1.41 A	Polar	36 mOhms			AEC-Q200	35 V	0.197 "	5 mm	1.7 A	0.492 in	12.5 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C	27 mm	1.063 in
Nichicon UPM1A272MHD6TN	2700 µF	20 %	5000 Hrs	1.56 A	Polar	35 mOhms			AEC-Q200	10 V	0.295 in	7.5 mm	1.74 A	0.63 in	16 mm	Automotive	Through Hole	Can Radial	-55 C	105 ░C			0.866 in	22 mm
