LNT Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 100VOLTS 3300UF 0.2 35X80 105C

Part	Applications	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Tolerance	Lifetime @ Temp.	Mounting Type	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

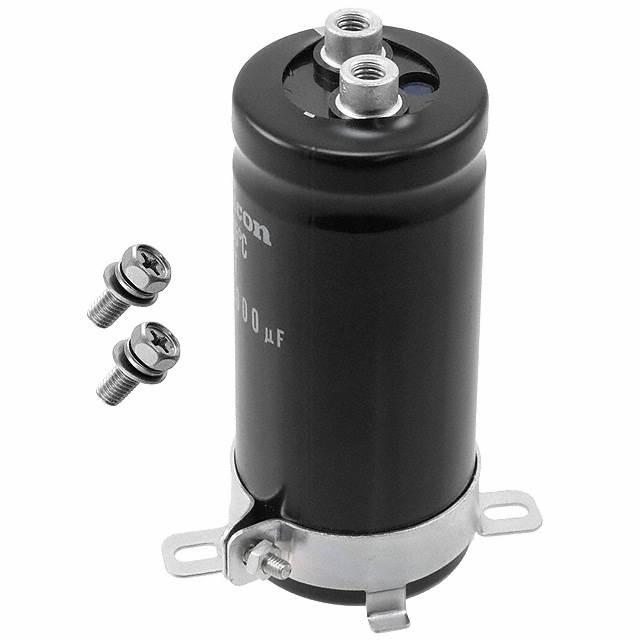

Nichicon LNT2A332MSE	General Purpose	100 V	1.378 "	35 mm	0.5 in	12.7 mm	20 %	2000 Hrs	Chassis Mount	3.3 mF	3.268 "	83 mm	Radial Can - Screw Terminals	3.795 A	3.3 A	Polar	-40 C	105 ░C

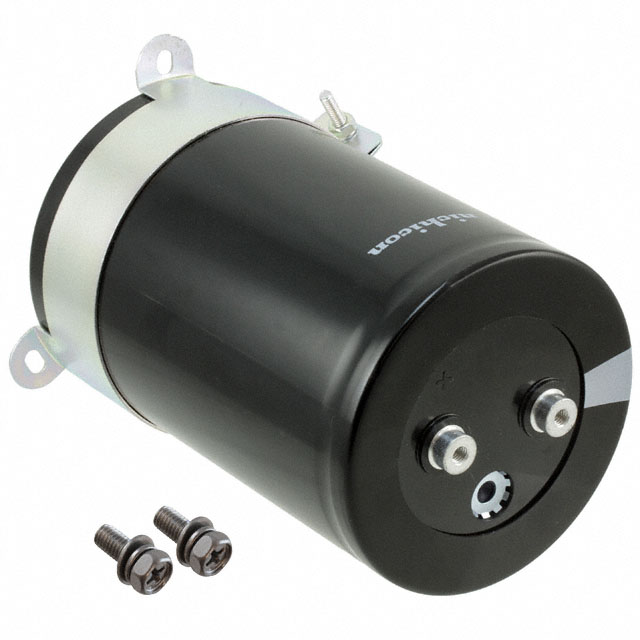

Nichicon LNT1K683MSE	General Purpose	80 V	3.543 in	90 mm	1.252 in	31.8 mm	20 %	2000 Hrs	Chassis Mount	68000 µF	5.63 in	143 mm	Radial Can - Screw Terminals	19.55 A	17 A	Polar	-40 C	105 ░C
Nichicon LNT2V223MSEKBN	General Purpose	350 V	3.937 "	100 mm	1.634 in	41.5 mm	20 %	5000 Hrs	Chassis Mount	22000 µF	254 mm	254 mm	Radial Can - Screw Terminals	67.2 A	48 A	Polar	-25 °C	105 ░C
Nichicon LNT2A222MSE	General Purpose	100 V	1.378 "	35 mm	0.5 in	12.7 mm	20 %	2000 Hrs	Chassis Mount	2200 µF	3.268 "	83 mm	Radial Can - Screw Terminals	2.76 A	2.4 A	Polar	-40 C	105 ░C

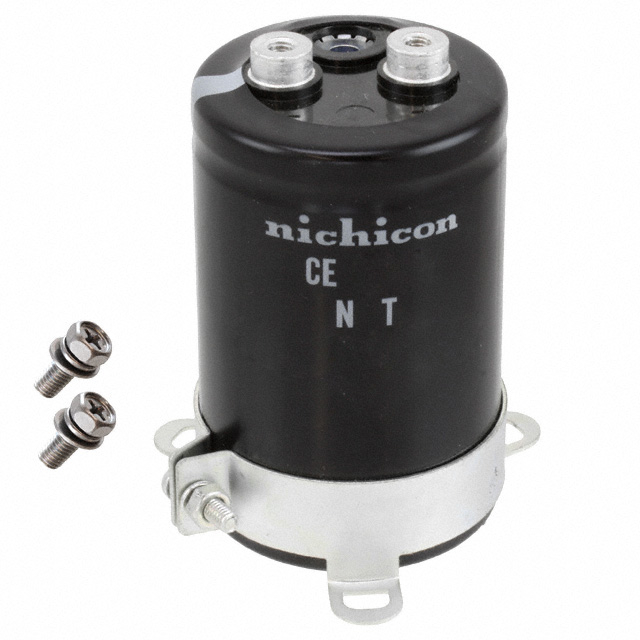

Nichicon LNT2G102MSEF	General Purpose	400 V	2.008 in	51 mm	0.866 "	22 mm	20 %	5000 Hrs	Chassis Mount	1000 µF	3.268 "	83 mm	Radial Can - Screw Terminals	9.24 A	6.6 A	Polar	-25 °C	105 ░C

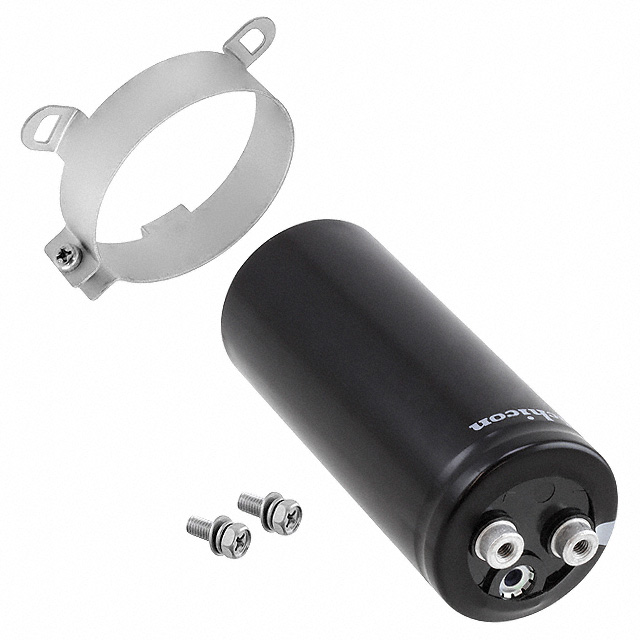

Nichicon LNT1E683MSE	General Purpose	25 VDC	2.008 in	51 mm	0.866 "	22 mm	20 %	2000 Hrs	Chassis Mount	68000 µF	4.843 in	123 mm	Radial Can - Screw Terminals	11.73 A	10.2 A	Polar	-40 C	105 ░C
Nichicon LNT1C224MSEN	General Purpose	16 V	2.5 in	63.5 mm	1.126 "	28.6 mm	20 %	2000 Hrs	Chassis Mount	220 mF	4.843 in	123 mm	Radial Can - Screw Terminals	21.15 A		Polar	-40 C	105 ░C
Nichicon LNT2V822MSEHBN	General Purpose	350 V	3 in	76.2 mm	1.252 in	31.8 mm	20 %	5000 Hrs	Chassis Mount				Radial Can - Screw Terminals	42.42 A	30.3 A	Polar	-25 °C	105 ░C	6.811 in	173 mm
Nichicon LNT2G222MSEGBB	General Purpose	400 V	2.5 in	63.5 mm	1.126 "	28.6 mm	20 %	5000 Hrs	Chassis Mount	2200 µF			Radial Can - Screw Terminals	16.1 A	11.5 A	Polar	-25 °C	105 ░C	4.055 in	103 mm
Nichicon LNT1J473MSEN	General Purpose	63 V	2.5 in	63.5 mm	1.126 "	28.6 mm	20 %	2000 Hrs	Chassis Mount	47 mF	4.843 in	123 mm	Radial Can - Screw Terminals	16.8 A	11.2 A	Polar	-40 C	105 ░C
