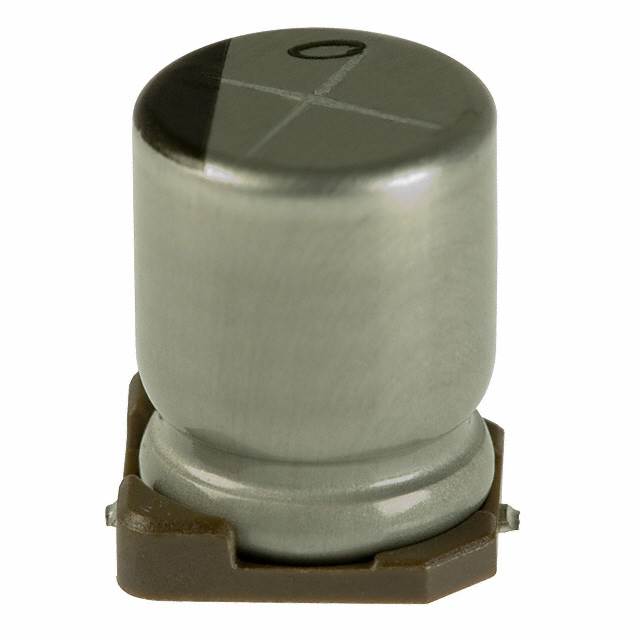

UWT Series

Manufacturer: Nichicon

Catalog

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 470 ΜF, 6.3 V, 2000 HOURS @ 85°C, POLAR

Part	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ High Frequency	Tolerance	Polarization	Ratings	Capacitance	Applications	Ripple Current @ Low Frequency	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type
Nichicon UWT0J471MNL1GS	8.3 mm	8.3 mm	0.327 in	0.327 in	-55 C	105 ░C	1000 Hrs	0.315 in	8 mm	6.3 VDC	315 mA	20 %	Polar	AEC-Q200	470 µF	General Purpose	210 mA	Radial Can - SMD	10 mm	0.394 in	Surface Mount
Nichicon UWT0J220MCL1GB	4.3 mm	4.3 mm	0.169 in	0.169 "	-55 C	105 ░C	1000 Hrs	0.157 in	4 mm	6.3 VDC	33 mA	20 %	Polar	AEC-Q200	22 µF	General Purpose	22 mA	Radial Can - SMD	5.4 mm	0.213 in	Surface Mount
Nichicon UWT0J151MCL1GS	6.6 mm	6.6 mm	0.26 in	0.26 in	-55 C	105 ░C	1000 Hrs	0.248 "	6.3 mm	6.3 VDC	129 mA	20 %	Polar	AEC-Q200	150 µF	General Purpose	86 mA	Radial Can - SMD	5.8 mm	0.228 "	Surface Mount
Nichicon UWT1V331MNQ1GS
Nichicon UWT1E100MCL1GB	0.209 in 5.3 mm	0.209 in 5.3 mm			-55 C	105 ░C	1000 Hrs	0.197 in	5 mm	25 VDC	34.5 mA	20 %	Polar	AEC-Q200	10 µF	General Purpose	23 mA	Radial Can - SMD	5.4 mm	0.213 in	Surface Mount
Nichicon UWT1V331MNL1GS	10.3 mm	10.3 mm	0.406 "	0.406 in	-55 C	105 ░C	1000 Hrs	0.394 in	10 mm	35 V	450 mA	20 %	Polar	AEC-Q200	330 µF	General Purpose	300 mA	Radial Can - SMD	10 mm	0.394 in	Surface Mount
