50MT060 Series

Catalog

IGBT MODULE 600V 114A 658W MTP

Part	Mounting Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Vce(on) (Max) @ Vge, Ic	Package / Case	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	IGBT Type	Power - Max [Max]	Input Capacitance (Cies) @ Vce

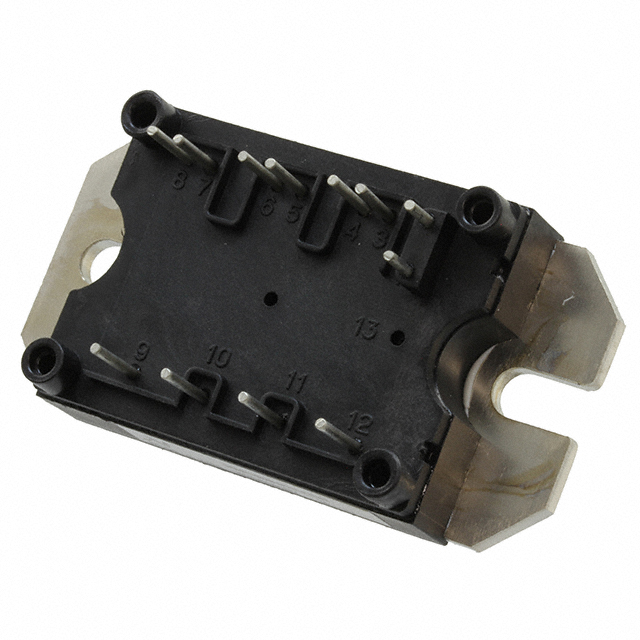

Vishay General Semiconductor - Diodes Division VS-50MT060WHTAPBF	Chassis Mount	MTP	114 A	Half Bridge	150 °C	-40 °C	3.2 V	12-MTP Module	400 µA	600 V	Standard
Vishay General Semiconductor - Diodes Division VS-50MT060TFT	Chassis Mount	20-MTP	55 A	Full Bridge	175 °C	-40 C	2.1 V	20-MTP Module	40 µA	600 V	Standard	Trench Field Stop	144 W	3000 pF
Vishay General Semiconductor - Diodes Division VS-50MT060PHTAPBF	Through Hole	12-MTP	121 A	Half Bridge	150 °C	-40 °C	1.64 V	12-MTP Module		600 V	Standard	Trench Field Stop	305 W	6000 pF
Vishay General Semiconductor - Diodes Division 50MT060ULS	Chassis Mount	10-MTP	100 A	Single	150 °C	-40 °C	2.55 V	10-MTP	250 µA	600 V	Standard		445 W	14.7 nF
