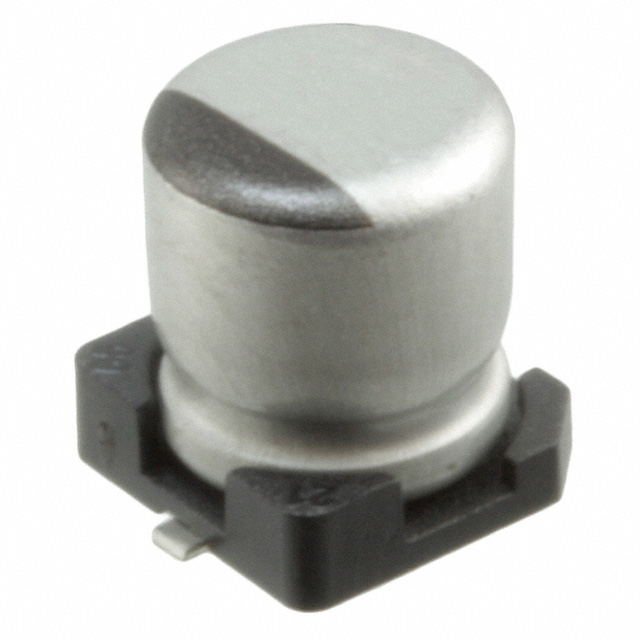

UUT Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SMD 16VOLTS 22UF AEC-Q200
| Part | Ripple Current @ High Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Capacitance | Tolerance | Polarization | Mounting Type | Ripple Current @ Low Frequency | Lifetime @ Temp. | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Package / Case | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Surface Mount Land Size [y] | Surface Mount Land Size [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 45 mA | -55 C | 105 ░C | General Purpose | 22 µF | 20 % | Polar | Surface Mount | 30 mA | 2000 Hrs | 6.1 mm | 0.24 " | 0.209 in 5.3 mm | 0.209 in 5.3 mm | Radial Can - SMD | 16 V | 0.197 in | 5 mm | ||
 Nichicon | 21 mA | -55 C | 105 ░C | General Purpose | 3.3 µF | 20 % | Polar | Surface Mount | 14 mA | 2000 Hrs | 6.1 mm | 0.24 " | 4.3 mm | 4.3 mm | Radial Can - SMD | 50 VDC | 0.157 in | 4 mm | 0.169 " | 0.169 in |
 Nichicon | 63 mA | -55 C | 105 ░C | General Purpose | 22 µF | 20 % | Polar | Surface Mount | 42 mA | 2000 Hrs | 6.1 mm | 0.24 " | 6.6 mm | 6.6 mm | Radial Can - SMD | 35 V | 0.248 " | 6.3 mm | 0.26 in | 0.26 in |
