TEN 6 Series

Catalog

DC DC CONVERTER 24V 6W

Part	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Output 1	Package / Case	Voltage - Isolation	Voltage - Input (Max) [Max]	Applications	Voltage - Output 2	Current - Output (Max)
Traco Power TEN 6-2415N	84 %	250 mA	6 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	24 V	24-DIP Module 7 Leads	1.5 kV	36 V	ITE (Commercial)
Traco Power TEN 6-4822N	84 %		6 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	36 V	12 V	24-DIP Module 8 Leads	1.5 kV	75 V	ITE (Commercial)	-12 V	250 mA
Traco Power TEN 6-2423N	84 %		6 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	15 V	24-DIP Module 8 Leads	1.5 kV	36 V	ITE (Commercial)	-15 V
Traco Power TEN 6-2421WIN	80 %		5 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	5 V	24-DIP Module 8 Leads	1.5 kV	36 V	ITE (Commercial)	-5 V	500 mA
Traco Power TEN 6-2415WIN	84 %	250 mA	6 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	24 V	24-DIP Module 7 Leads	1.5 kV	36 V	ITE (Commercial)
Traco Power TEN 6-4822WIN	84 %		6 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	12 V	24-DIP Module 8 Leads	1.5 kV	75 V	ITE (Commercial)	-12 V	250 mA
Traco Power TEN 6-4810WIN	77 %	1.2 A	4 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	3.3 V	24-DIP Module 7 Leads	1.5 kV	75 V	ITE (Commercial)
Traco Power TEN 6-2410WIN	77 %	1.2 A	4 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	3.3 V	24-DIP Module 7 Leads	1.5 kV	36 V	ITE (Commercial)
Traco Power TEN 6-2422N	84 %		6 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	12 V	24-DIP Module 7 Leads	1.5 kV	36 V	ITE (Commercial)	-12 V	250 mA

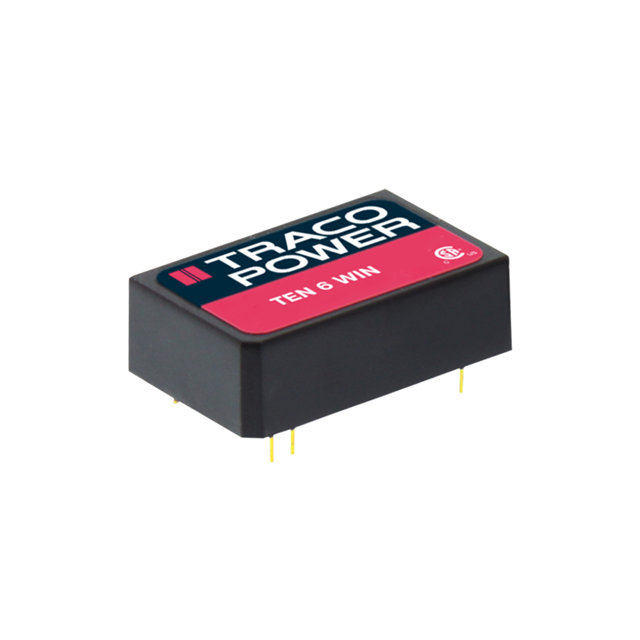

Traco Power TEN 6-4815WIN	84 %	250 mA	6 W	-40 °C	85 °C	OCP SCP	Isolated Module	Through Hole	1	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	24 V	24-DIP Module 7 Leads	1.5 kV	75 V	ITE (Commercial)
