CPI Series
Manufacturer: Laird Technologies EMI
Beta
⌘K
POWER INDUCTORS - SMD CHIPINDSGL,0806 4.7+0.30
| Part | Supplier Device Package | Shielding | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Inductance Frequency - Test | Tolerance | DC Resistance (DCR) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Inductance | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

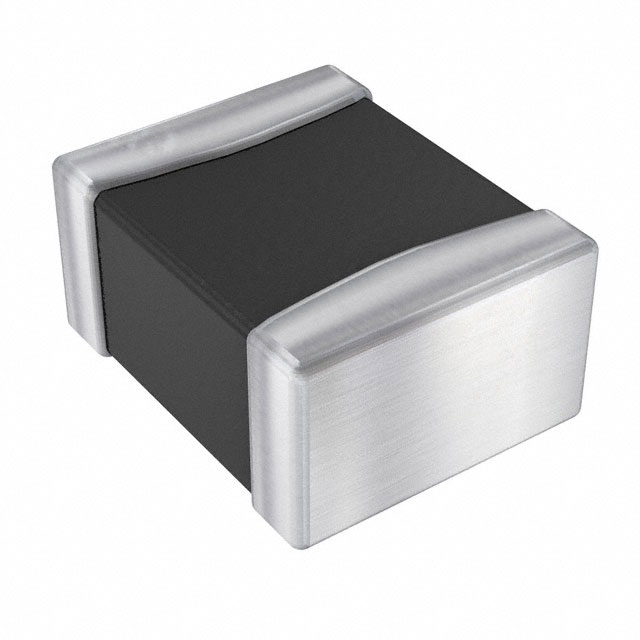

 Laird Technologies EMI | 0806 (2016 Metric) | Unshielded | Multilayer | 0.039 in | 1 mm | -55 C | 125 °C | 1.1 A | 1 MHz | 20 % | 300 mOhm | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 0806 (2016 Metric) | Surface Mount | 4.7 ÁH | ||
 Laird Technologies EMI | 1008 | Unshielded | Multilayer | 0.039 in | 1 mm | -55 C | 125 °C | 1.7 A | 1 MHz | 20 % | 100 mOhm | 2 mm | 0.098 in | 0.079 in | 2.5 mm | 1008 | Surface Mount | 820 nH | 2520 Metric | 2520 Metric |
