1436 Series

Catalog

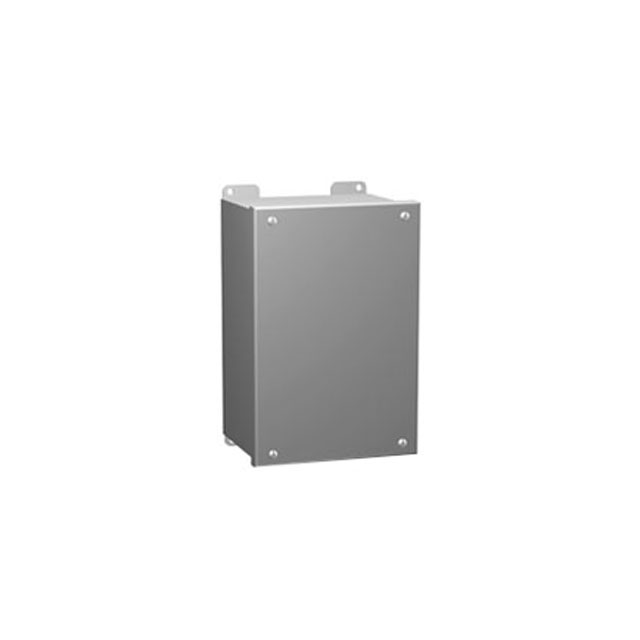

BOX STEEL GRAY 14"L X 10.75"W

Part	Weight	Weight	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Design	Height	Height [z]	Color	Thickness	Material	Area (L x W)	Area (L x W)	Ratings	Height	Size / Dimension [y]	Weight [custom]	Weight [custom]
Hammond Manufacturing 1436V	11 lbs	5 kg	10.75 in	273.05 mm	355.6 mm	14 "	Box	Hinged Door Lid	76.2 mm	3 in	Gray	14 Gauge	Metal Steel	974 cm²	151 in²	IP54 NEMA 12 NEMA 13 UL-508
Hammond Manufacturing 1436C	3.1 lbs	1.4 kg			203.2 mm		Box	Cover Included	69.85 mm		Gray	14 Gauge	Metal Steel	168 cm²	26 in²	IP54 NEMA 12 NEMA 13 UL-508	2.75 in	82.55 mm
Hammond Manufacturing 1436A	2 lbs	907.2 g	3.25 "		88.9 mm	3.5 "	Box	Cover Included	69.85 mm		Gray	14 Gauge	Metal Steel	74 cm²	11.5 in²	IP54 NEMA 12 NEMA 13 UL-508	2.75 in	82.55 mm
Hammond Manufacturing 1436K	7 lbs	3.2 kg	8.5 in		241.3 mm	9.5 in	Box	Hinged Door Lid	76.2 mm	3 in	Gray	14 Gauge	Metal Steel	521 cm²	80.8 in²	IP54 NEMA 12 NEMA 13 UL-508		215.9 mm
Hammond Manufacturing 1436O	8 lbs	3.6 kg	8.5 in	215.9 mm	298.45 mm	11.75 in	Box	Hinged Door Lid	76.2 mm	3 in	Gray	14 Gauge	Metal Steel			IP54 NEMA 12 NEMA 13 UL-508
Hammond Manufacturing 1436S			10.75 in		298.45 mm	11.75 in	Box	Hinged Door Lid	76.2 mm	3 in	Gray	14 Gauge	Metal Steel	813 cm²	126 in²	IP54 NEMA 12 NEMA 13 UL-508		273.05 mm	4.1 kg	9 lbs
Hammond Manufacturing 1436D			3.25 "		260.35 mm	10.25 "	Box	Cover Included	69.85 mm		Gray	14 Gauge	Metal Steel	215 cm²	33.3 in²	IP54 NEMA 12 NEMA 13 UL-508	2.75 in	82.55 mm	1.8 kg	4 lbs
Hammond Manufacturing 1436F			6.25 in		184.15 mm	7.25 "	Box	Hinged Door Lid	76.2 mm	3 in	Gray	14 Gauge	Metal Steel	292 cm²	45.3 in²	IP54 NEMA 12 NEMA 13 UL-508		158.75 mm	2.3 kg	5 lbs
Hammond Manufacturing 1436H			6.25 in		241.3 mm	9.5 in	Box	Hinged Door Lid	76.2 mm	3 in	Gray	14 Gauge	Metal Steel	383 cm²	59.4 in²	IP54 NEMA 12 NEMA 13 UL-508		158.75 mm	2.3 kg	5 lbs
Hammond Manufacturing 1436B	2 lbs	907.2 g	3.25 "	82.55 mm	146.05 mm	5.75 in	Box	Cover Included	69.85 mm		Gray	14 Gauge	Metal Steel	121 cm²	18.7 in²	IP54 NEMA 12 NEMA 13 UL-508	2.75 in
