F3L225 Series

Manufacturer: INFINEON

Catalog

IGBT MODULE, 1.2KV, 175A, PRESS FIT ROHS COMPLIANT: YES

Part	NTC Thermistor	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Supplier Device Package	Input	Package / Case	Vce(on) (Max) @ Vge, Ic	Configuration

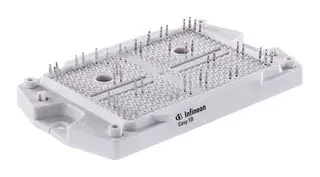

INFINEON F3L225R12W3H3B11BPSA1		Chassis Mount	-40 °C	150 °C	1 mA	225 A	Trench Field Stop	1200 V	13.1 nF	Module	Standard	Module	2.55 V
INFINEON F3L225R07W2H3PB63BPSA1		Chassis Mount	-40 °C	150 °C	1 mA	225 A		650 V	14 nF	AG-EASY2B	Standard	Module	1.75 V	Single Switch
