SW20 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN CIRC PLUG
| Part | Housing Material | Body Material | Reflection | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Type | Connector Type | Simplex/Duplex | Ingress Protection | Mode | Housing Color | Connector Style | Cable Diameter [diameter] | Material | For Use With/Related Products | Accessory Type | Color | Features | Convert From (Adapter End) | Type | Convert To (Adapter End) | Material Flammability Rating | Ferrule Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Zinc Alloy | Zinc Alloy | -40 dB | 200 | 85 °C | -40 C | Bayonet Lock | Free Hanging (In-Line) | Plug | Simplex | IP67 - Dust Tight Waterproof | Singlemode | Black | SC | 7 mm | ||||||||||
Hirose Electric Co Ltd | Zinc Die Cast | Zinc Die Cast | -40 dB | 200 | 85 °C | -40 C | Bayonet Lock | Free Hanging (In-Line) | Plug | Duplex | IP67 - Dust Tight Waterproof | Singlemode | Black | LC | 7 mm | ||||||||||
Hirose Electric Co Ltd | Zinc Alloy | Zinc Alloy | -40 dB | 200 | 85 °C | -40 C | Bayonet Lock | Free Hanging (In-Line) | Plug | Simplex | IP67 - Dust Tight Waterproof | Singlemode | Black | SC | 7 mm | ||||||||||
Hirose Electric Co Ltd | 85 °C | -40 C | Silicon Rubber (SI) | LC Connectors SC Connectors | Dust Cap | Black | |||||||||||||||||||
Hirose Electric Co Ltd | 85 °C | -40 C | Silicon Rubber (SI) | LC Connectors SC Connectors | Dust Cap | Black | |||||||||||||||||||

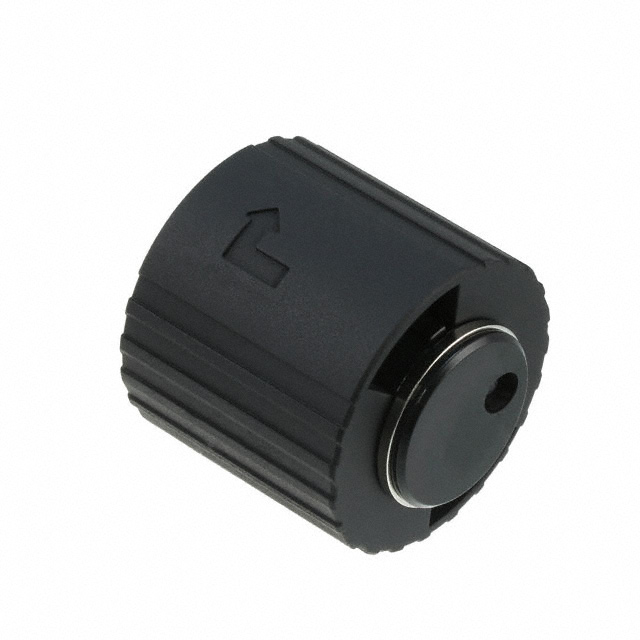

 Hirose Electric Co Ltd | 85 °C | -40 C | IP67 - Dust Tight Waterproof | SW20 Receptacles | Dust Cap | ||||||||||||||||||||

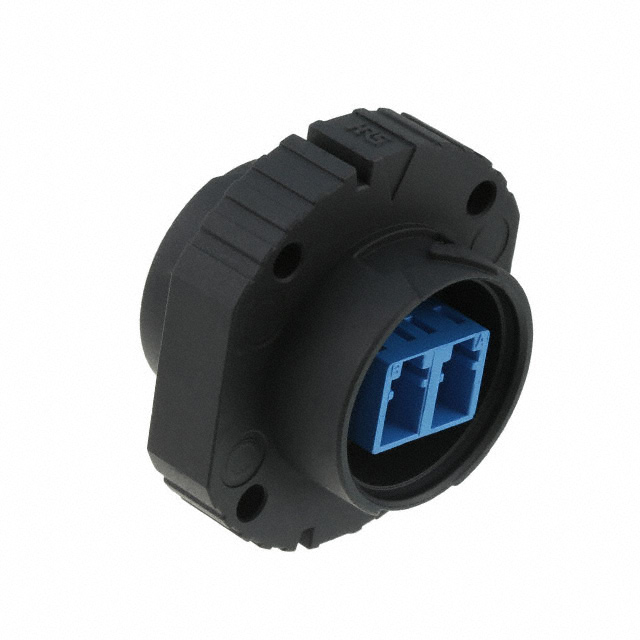

 Hirose Electric Co Ltd | Zinc Die Cast | 85 °C | -40 C | Flange Panel Mount | Duplex | IP67 - Dust Tight Waterproof | Blue | Dust Cap | LC Receptacle | Coupler | LC Receptacle | ||||||||||||||

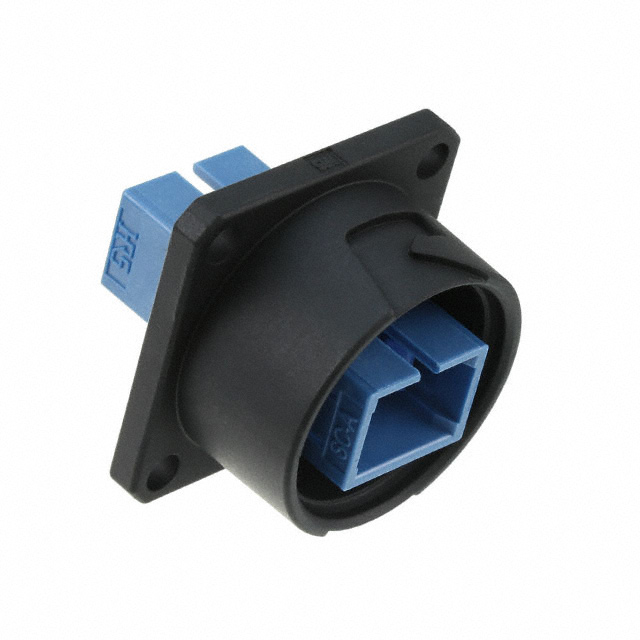

 Hirose Electric Co Ltd | 85 °C | -40 C | Panel Mount Square Flange | Simplex | IP67 - Dust Tight Waterproof | Blue | Dust Cap | SC Receptacle | Coupler | SC Receptacle | UL94 V-0 | Zirconia | |||||||||||||
Hirose Electric Co Ltd | Zinc Die Cast | Zinc Die Cast | -40 dB | 200 | 85 °C | -40 C | Bayonet Lock | Free Hanging (In-Line) | Plug | Simplex | IP67 - Dust Tight Waterproof | Singlemode | Black | LC | 7 mm | Zirconia | |||||||||
Hirose Electric Co Ltd | Zinc Die Cast | Zinc Die Cast | -40 dB | 200 | 85 °C | -40 C | Bayonet Lock | Free Hanging (In-Line) | Plug | Duplex | IP67 - Dust Tight Waterproof | Singlemode | Black | LC | 7 mm |
