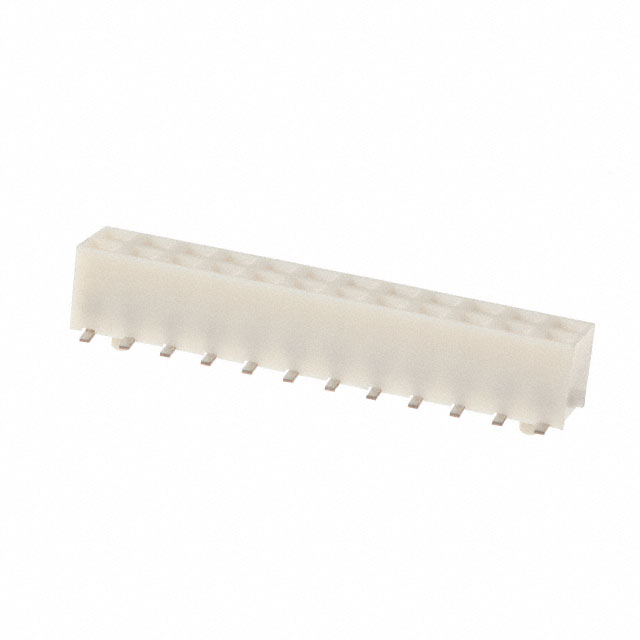

A3-24DA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT 24POS 0.079 GOLD SMD
| Part | Contact Material | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Insulation Material | Number of Positions | Termination | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Fastening Type | Number of Positions Loaded | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage Rating | Contact Type | Contact Finish - Mating | Material Flammability Rating | Style | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Phosphor Bronze | General Purpose Telecommunications | 39.4 çin | 1 çm | Square | Polyphenylene Sulfide (PPS) | 24 | Solder | Tin | 8 µin | 0.203 µm | Receptacle | Push-Pull | All | 0.165 in | 4.2 mm | 0.079 " | 2 mm | -55 C | 85 °C | Surface Mount | 200 VAC | Female Socket | Gold | UL94 V-0 | Board to Board Cable | Brown | 2 mm | 0.079 in | 2 | 5.1 mm 6 mm |
