URS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED

Part	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Tolerance	Applications	Mounting Type	Ripple Current @ Low Frequency	Package / Case	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon URS1C682MHD1CA	2000 Hrs	0.295 in	7.5 mm	2.4955 A	20 %	General Purpose	Through Hole	2.17 A	Can Radial	6800 µF	26.5 mm	1.043 in	85 °C	-40 C	Polar	16 V	0.709 in	18 mm

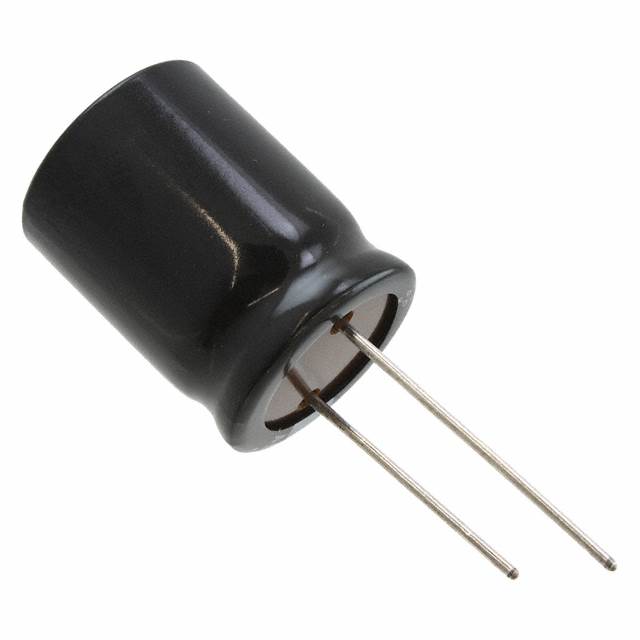

Nichicon URS1H222MRD	2000 Hrs	0.394 in	10 mm	2.0125 A	20 %	General Purpose	Through Hole	1.75 A	Can Radial	2200 µF			85 °C	-40 C	Polar	50 VDC	0.787 "	20 mm	1.063 in	27 mm
Nichicon URS1C332MHD1TN	2000 Hrs	0.295 in	7.5 mm	1.679 A	20 %	General Purpose	Through Hole	1.46 A	Can Radial	3.3 mF	16.5 mm	0.65 in	85 °C	-40 C	Polar	16 V	0.709 in	18 mm
Nichicon URS2G470MHD1TN	2000 Hrs	0.295 in	7.5 mm		20 %	General Purpose	Through Hole	420 mA	Can Radial	47 µF			85 °C	-40 C	Polar	400 V	0.709 in	18 mm	1.063 in	27 mm
Nichicon URS2C680MHD6	2000 Hrs	0.295 in	7.5 mm	784 mA	20 %	General Purpose	Through Hole	490 mA	Can Radial	68 µF	16.5 mm	0.65 in	85 °C	-40 C	Polar	160 V	0.63 in	16 mm
Nichicon URS1C222MHD1AA	2000 Hrs	0.295 in	7.5 mm	1.334 A	20 %	General Purpose	Through Hole	1.16 A	Can Radial	2.2 mF	16.5 mm	0.65 in	85 °C	-40 C	Polar	16 V	0.63 in	16 mm
Nichicon URS1A103MHD	2000 Hrs	0.295 in	7.5 mm	2.7025 A	20 %	General Purpose	Through Hole	2.35 A	Can Radial	10000 µF	26.5 mm	1.043 in	85 °C	-40 C	Polar	10 V	0.709 in	18 mm
Nichicon URS1J221MHD	2000 Hrs	0.197 "	5 mm		20 %	General Purpose	Through Hole	490 mA	Can Radial	220 µF			85 °C	-40 C	Polar	63 V	0.492 in	12.5 mm	0.551 in	14 mm
