High-voltage PMIC for automotive applications
Key Features
• AEC-Q100 qualified for automotive applications:Device temp grade 1:-40°C to +125°C, T ASupports system-level functional safety requirements up to ASIL-C (ISO 26262) and SIL-2 (IEC 61508)Synchronous buck preregulator (BUCK1)Input voltage range from 4 V to 36 VOutput currents up to 3.1 AFactory-selectable output voltage: 3.3 V or 3.6 VSynchronous buck regulator (BUCK2)Fixed input voltage: 3.3 V or 3.6 VOutput currents up to 2 AFactory-selectable output voltage: 1.2 V, 1.25 V, 1.8 V, or 2.3 VSynchronous boost converter (BOOST)Fixed input voltage of 3.3 V or 3.6 VOutput currents up to 600 mAOutput voltage of 5 VPhase-locked loop (PLL)Output frequency around 2.2 MHzSupports modulated or unmodulated external clock at SYNC_IN pinFor all regulatorsSoft-start featureIndependent voltage monitoring with diagnosticsOvercurrent, overload , overvoltage, undervoltage, and thermal protectionInternal loop compensationIntegrated adaptively randomized spread spectrum (ARSS) modulation for regulator switching clock3-µA quiescent current in the OFF stateSPI for control and diagnosticsTwo general-purpose external-voltage monitorsIntegrated Q&A watchdog and reset supervisor for MCU or DSPThermally enhanced 40-Pin VQFNP package with 0.5-mm pitchAEC-Q100 qualified for automotive applications:Device temp grade 1:-40°C to +125°C, T ASupports system-level functional safety requirements up to ASIL-C (ISO 26262) and SIL-2 (IEC 61508)Synchronous buck preregulator (BUCK1)Input voltage range from 4 V to 36 VOutput currents up to 3.1 AFactory-selectable output voltage: 3.3 V or 3.6 VSynchronous buck regulator (BUCK2)Fixed input voltage: 3.3 V or 3.6 VOutput currents up to 2 AFactory-selectable output voltage: 1.2 V, 1.25 V, 1.8 V, or 2.3 VSynchronous boost converter (BOOST)Fixed input voltage of 3.3 V or 3.6 VOutput currents up to 600 mAOutput voltage of 5 VPhase-locked loop (PLL)Output frequency around 2.2 MHzSupports modulated or unmodulated external clock at SYNC_IN pinFor all regulatorsSoft-start featureIndependent voltage monitoring with diagnosticsOvercurrent, overload , overvoltage, undervoltage, and thermal protectionInternal loop compensationIntegrated adaptively randomized spread spectrum (ARSS) modulation for regulator switching clock3-µA quiescent current in the OFF stateSPI for control and diagnosticsTwo general-purpose external-voltage monitorsIntegrated Q&A watchdog and reset supervisor for MCU or DSPThermally enhanced 40-Pin VQFNP package with 0.5-mm pitch
Description
AI

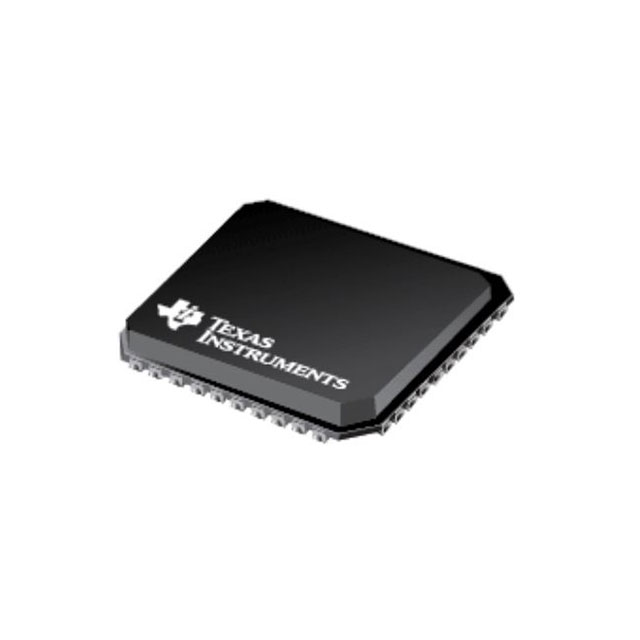

The TPS65313-Q1 device is a power management IC (PMIC) that meets the requirements of MCU-controlled or DSP-controlled automotive, industrial, machinery, or transportation systems. With the integration of commonly used features, the device helps reduce board space and system cost.
The device includes one wide-VIN synchronous buck regulator (BUCK1) combined with one low-voltage (LV) buck regulator (BUCK2) and one boost converter (BOOST), which are powered from the wide-VIN buck regulator (BUCK1). The device features a low quiescent current in the OFF state to reduce current consumption in case the system is permanently connected to the supply. All outputs are protected against overvoltage, overload, and overtemperature conditions.
The TPS65313-Q1 device is a power management IC (PMIC) that meets the requirements of MCU-controlled or DSP-controlled automotive, industrial, machinery, or transportation systems. With the integration of commonly used features, the device helps reduce board space and system cost.
The device includes one wide-VIN synchronous buck regulator (BUCK1) combined with one low-voltage (LV) buck regulator (BUCK2) and one boost converter (BOOST), which are powered from the wide-VIN buck regulator (BUCK1). The device features a low quiescent current in the OFF state to reduce current consumption in case the system is permanently connected to the supply. All outputs are protected against overvoltage, overload, and overtemperature conditions.
