TS06-667 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1.6N

...

Part	Mounting Type	Circuit	Actuator Orientation	Switch Function	Outline [x]	Outline [y]	Illumination	Contact Rating @ Voltage	Termination Style	Actuator Material	Actuator Type	Mechanical Life	Actuator Height off PCB, Vertical [z]	Operating Force	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical
Same Sky (Formerly CUI Devices) TS06-667-25-R-160-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing	Polyamide (PA FR52) Nylon FR52	Standard	80000 Cycles	2.5 mm	160 gf	0.25 mm	80 °C	-30 ░C
Same Sky (Formerly CUI Devices) TS06-667-34-WT-160-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing		Standard			160 gf		80 °C	-30 ░C	3.4 mm
Same Sky (Formerly CUI Devices) TS06-667-25-WT-260-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing		Standard		2.5 mm	260 gf		80 °C	-30 ░C
Same Sky (Formerly CUI Devices) TS06-667-50-WT-260-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing		Standard		5 mm	260 gf		80 °C	-30 ░C
Same Sky (Formerly CUI Devices) TS06-667-25-BK-160-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing	Polyamide (PA FR52) Nylon FR52	Standard	80000 Cycles	2.5 mm	160 gf	0.25 mm	80 °C	-30 ░C

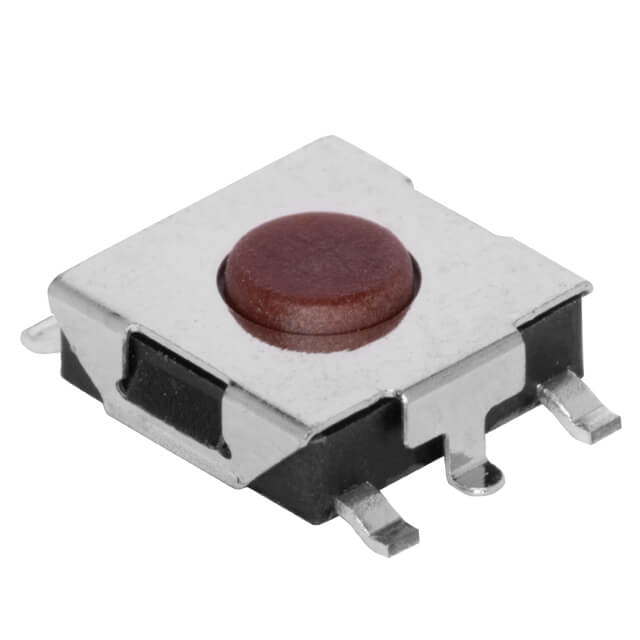

Same Sky (Formerly CUI Devices) TS06-667-25-R-100-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing		Standard		2.5 mm	100 gf		80 °C	-30 ░C
Same Sky (Formerly CUI Devices) TS06-667-43-BK-160-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing	Polyamide (PA FR52) Nylon FR52	Standard	80000 Cycles	4.3 mm	160 gf	0.25 mm	80 °C	-30 ░C
Same Sky (Formerly CUI Devices) TS06-667-50-BK-160-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing		Standard		5 mm	160 gf		80 °C	-30 ░C
Same Sky (Formerly CUI Devices) TS06-667-34-R-100-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing		Standard			100 gf		80 °C	-30 ░C	3.4 mm
Same Sky (Formerly CUI Devices) TS06-667-30-WT-160-G-SMT-TR	Surface Mount	SPST-NO	Top Actuated	Off-Mom	6.7 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	Gull Wing	Polyamide (PA FR52) Nylon FR52	Standard	80000 Cycles		160 gf	0.25 mm	80 °C	-30 ░C	3 mm
