LGG Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 180VOLTS 680UF 20%

Part	Capacitance	Applications	Tolerance	Package / Case	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Mounting Type	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

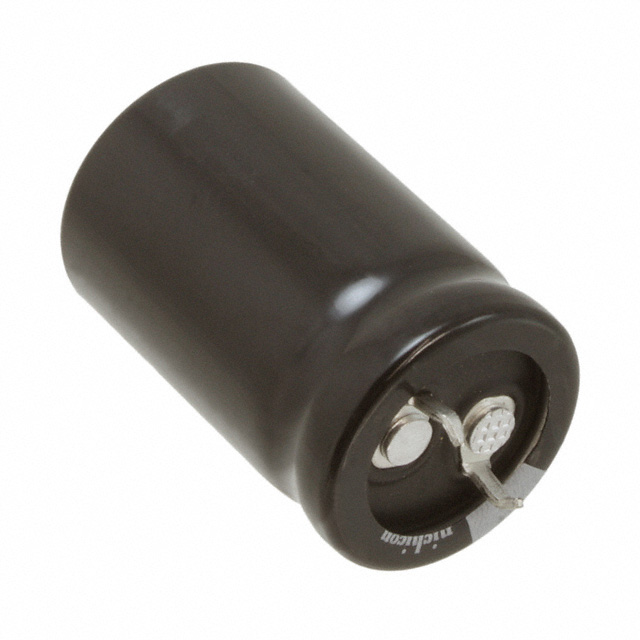

Nichicon LGG2Z681MELA30	680 µF	General Purpose	20 %	Radial Can - Snap-In	1.7 A	1.26 in	32 mm	2.55 A	0.394 in	10 mm	Polar	0.984 "	25 mm	180 VDC	Through Hole	2000 Hrs	-40 C	105 ░C
Nichicon LGGW6151MELZ35	150 µF	General Purpose	20 %	Radial Can - Snap-In	840 mA	1.457 in		1.2012 A	0.394 in	10 mm	Polar	0.866 "	22 mm	420 V	Through Hole	2000 Hrs	-25 °C	105 ░C	37 mm
Nichicon LGG2Z182MELB45	1800 µF	General Purpose	20 %	Radial Can - Snap-In	2.7 A			4.05 A	0.394 in	10 mm	Polar	1.181 "		180 VDC	Through Hole	2000 Hrs	-40 C	105 ░C		30 mm	1.85 in	47 mm
Nichicon LGG2C152MELB35	1.5 mF	General Purpose	20 %	Radial Can - Snap-In	2.5 A	1.457 in		3.75 A	0.394 in	10 mm	Polar	1.181 "		160 V	Through Hole	2000 Hrs	-40 C	105 ░C	37 mm	30 mm
Nichicon LGG2E471MELZ35	470 µF	General Purpose	20 %	Radial Can - Snap-In	1.3 A	1.457 in		1.95 A	0.394 in	10 mm	Polar	0.866 "	22 mm	250 V	Through Hole	2000 Hrs	-40 C	105 ░C	37 mm
Nichicon LGG2Z122MELA40	1.2 mF	General Purpose	20 %	Radial Can - Snap-In	2.15 A	1.654 in	42 mm	3.225 A	0.394 in	10 mm	Polar	0.984 "	25 mm	180 VDC	Through Hole	2000 Hrs	-40 C	105 ░C

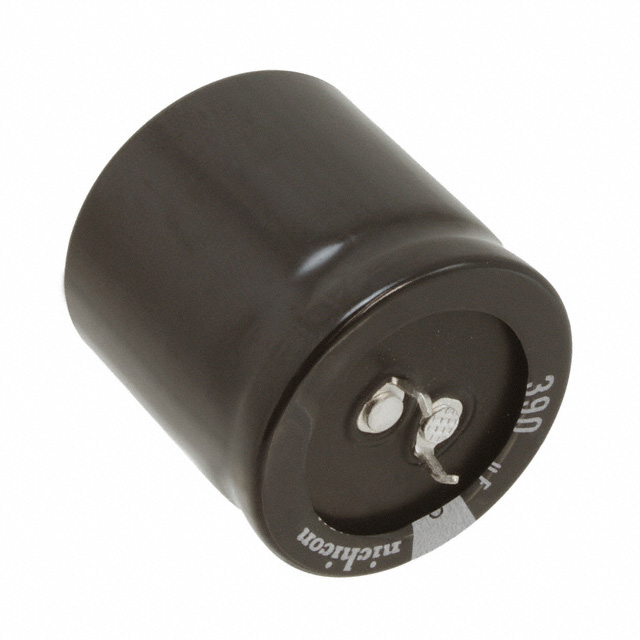

Nichicon LGGW6391MELC30	390 µF	General Purpose	20 %	Radial Can - Snap-In	1.45 A	1.26 in	32 mm	2.0735 A	0.394 in	10 mm	Polar	1.378 "	35 mm	420 V	Through Hole	2000 Hrs	-25 °C	105 ░C

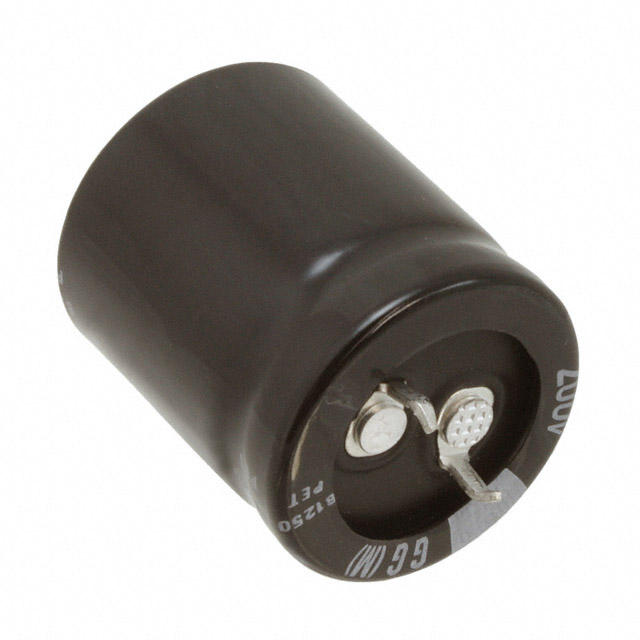

Nichicon LGG2D222MELC40	2200 µF	General Purpose	20 %	Radial Can - Snap-In	2.92 A	1.654 in	42 mm	4.38 A	0.394 in	10 mm	Polar	1.378 "	35 mm	200 VDC	Through Hole	2000 Hrs	-40 C	105 ░C
Nichicon LGG2C821MELA30	820 µF	General Purpose	20 %	Radial Can - Snap-In	2 A	1.26 in	32 mm	3 A	0.394 in	10 mm	Polar	0.984 "	25 mm	160 V	Through Hole	2000 Hrs	-40 C	105 ░C

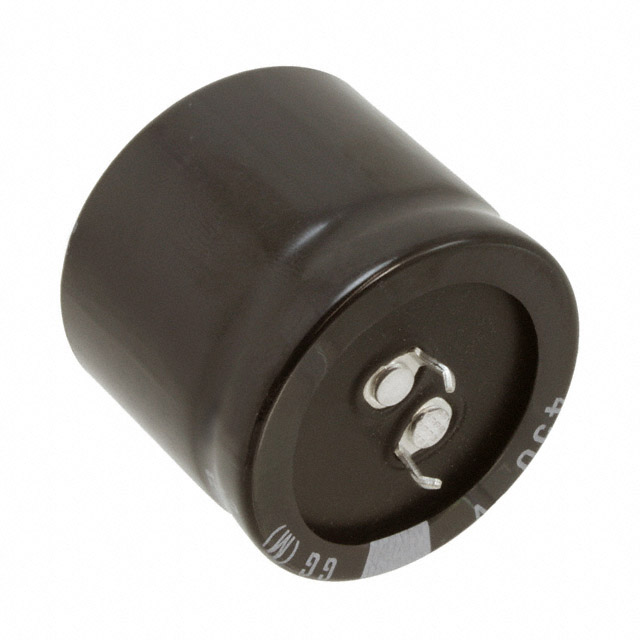

Nichicon LGG2W391MELC35	390 µF	General Purpose	20 %	Radial Can - Snap-In	1.38 A	1.457 in		1.9734 A	0.394 in	10 mm	Polar	1.378 "	35 mm	450 V	Through Hole	2000 Hrs	-25 °C	105 ░C	37 mm
