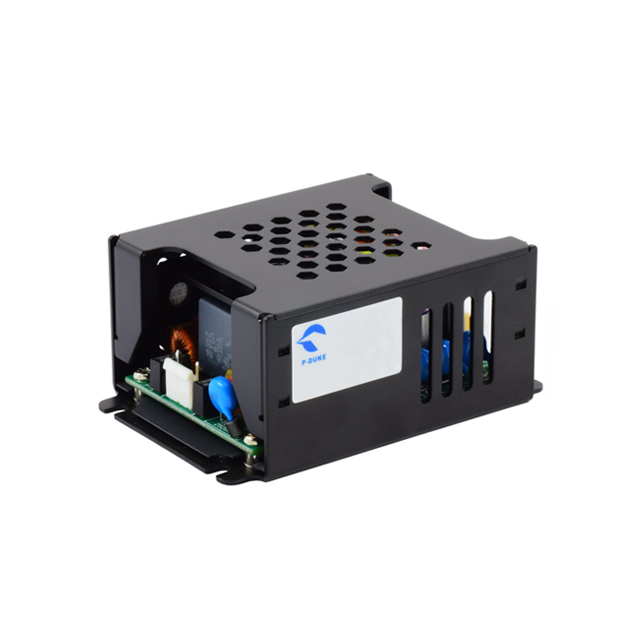

MED100 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
AC/DC CONVERTER 24V 100W
| Part | Minimum Load Required | Applications | Current - Output 1 | Mounting Type | Standard Number | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Features | Power (Watts) | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Efficiency | Type | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | ITE (Commercial) Medical | 4.17 A | Chassis Mount | 60601-1 60950-1 | 62 mm | 1.54 in | 2.44 " | 91.4 mm | 3.6 " | 39.1 mm | Adjustable Output Universal Input | 100 W | CB CE cURus FCC | -40 °C | 85 °C | 4000 V | 92 % | Enclosed | 24 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 1 | |
P-DUKE Technology | ITE (Commercial) Medical | 3.58 A | Chassis Mount | 60601-1 60950-1 | 62 mm | 1.54 in | 2.44 " | 91.4 mm | 3.6 " | 39.1 mm | Adjustable Output Universal Input | 100 W | CB CE cURus FCC | -40 °C | 85 °C | 4000 V | 92 % | Enclosed | 28 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 1 |
