BYV32 Series

Catalog

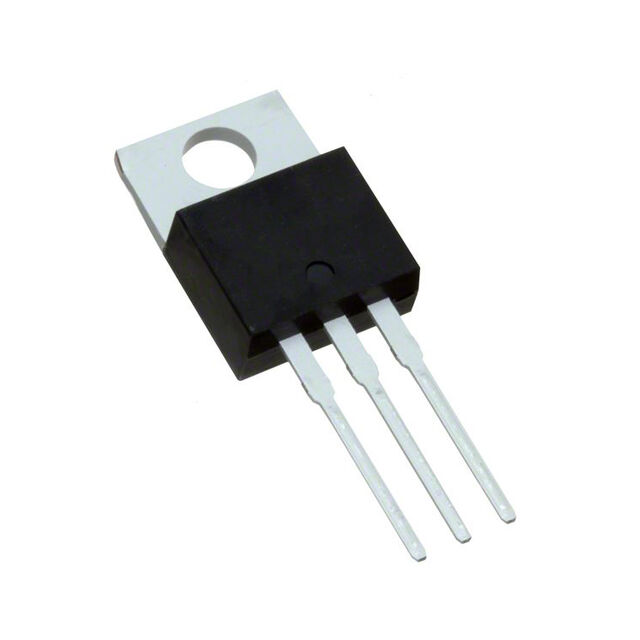

DIODE SWITCHING 200V 20A 3-PIN(3+TAB) TO-220AB RAIL

Part	Current - Average Rectified (Io) (per Diode)	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Package / Case	Mounting Type	Diode Configuration	Speed	Voltage - Forward (Vf) (Max) @ If [Max]
WeEn Semiconductors BYV32E-200,127	20 A	25 ns	150 °C	200 V	TO-220AB	30 µA	1.15 V	Standard	TO-220-3	Through Hole	1 Pair Common Cathode	200 mA 500 ns
WeEn Semiconductors BYV32E-100,127	20 A	25 ns	150 °C	100 V	TO-220AB	30 µA	1.15 V	Standard	TO-220-3	Through Hole	1 Pair Common Cathode	200 mA 500 ns
WeEn Semiconductors BYV32EB-200,118	20 A	25 ns	150 °C	200 V	D2PAK	30 µA	1.15 V	Standard	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1 Pair Common Cathode	200 mA 500 ns
WeEn Semiconductors BYV32EB-200PQ	20 A	25 ns	150 °C	200 V	D2PAK	5 ÁA	1.15 V	Standard	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1 Pair Common Cathode	200 mA 500 ns
WeEn Semiconductors BYV32G-200,127	20 A	25 ns	150 °C	200 V	TO-262 (I2PAK)	30 µA		Standard	I2PAK TO-262-3 Long Leads TO-262AA	Through Hole	1 Pair Common Cathode	200 mA 500 ns	850 mV
WeEn Semiconductors BYV32EB-300PJ	20 A	35 ns	175 ░C	300 V	D2PAK	20 µA		Standard	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1 Pair Common Cathode	200 mA 500 ns	1.25 V
WeEn Semiconductors BYV32E-300PQ	10 A	35 ns	175 ░C	300 V	TO-220E	20 µA		Standard	TO-220-3	Through Hole	1 Pair Common Cathode	200 mA 500 ns	1.25 V
WeEn Semiconductors BYV32E-200PQ	10 A	25 ns	175 ░C	200 V	TO-220AB	5 ÁA		Standard	TO-220-3	Through Hole	1 Pair Common Cathode	200 mA 500 ns	850 mV
WeEn Semiconductors BYV32E-150,127	20 A	25 ns	150 °C		TO-220AB	30 µA	1.15 V	Standard	TO-220-3	Through Hole	1 Pair Common Cathode	200 mA 500 ns
WeEn Semiconductors BYV32EB-200PJ	20 A	25 ns	175 ░C	200 V	D2PAK	5 ÁA	1.15 V	Standard	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1 Pair Common Cathode	200 mA 500 ns
