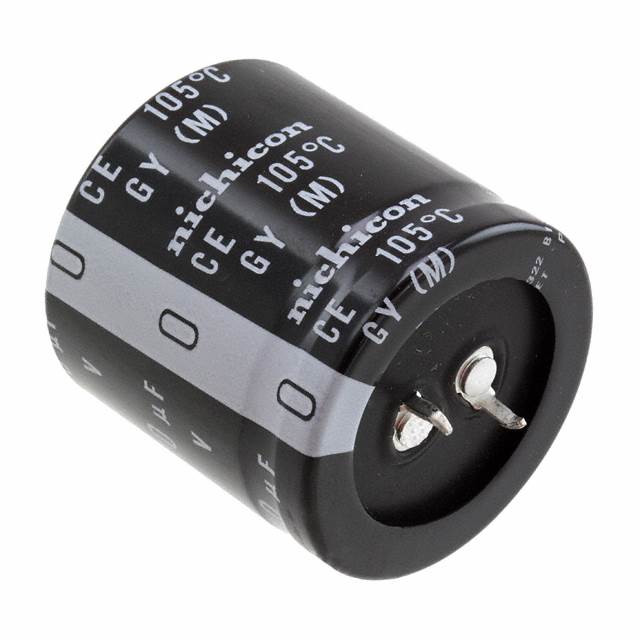

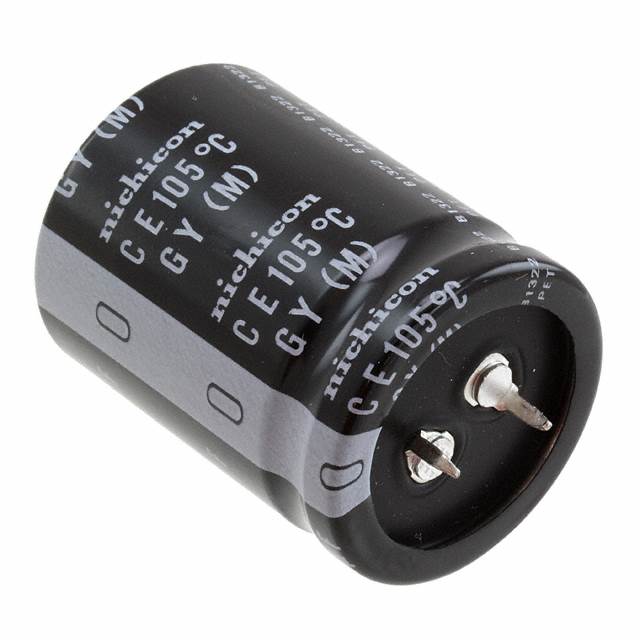

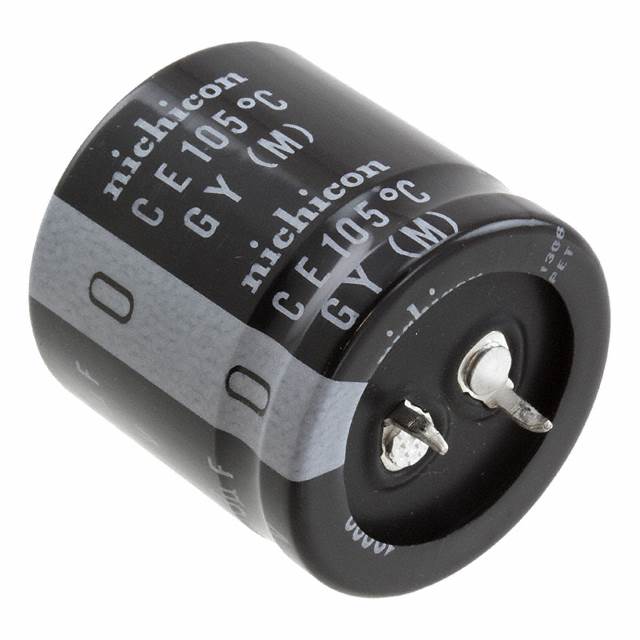

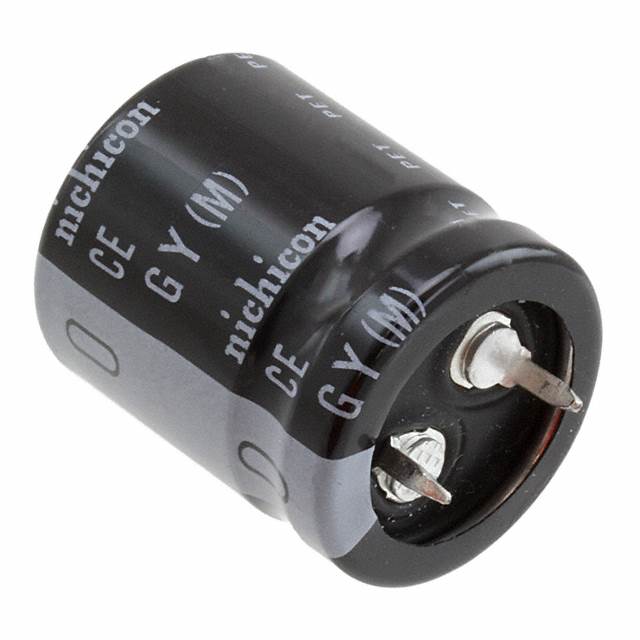

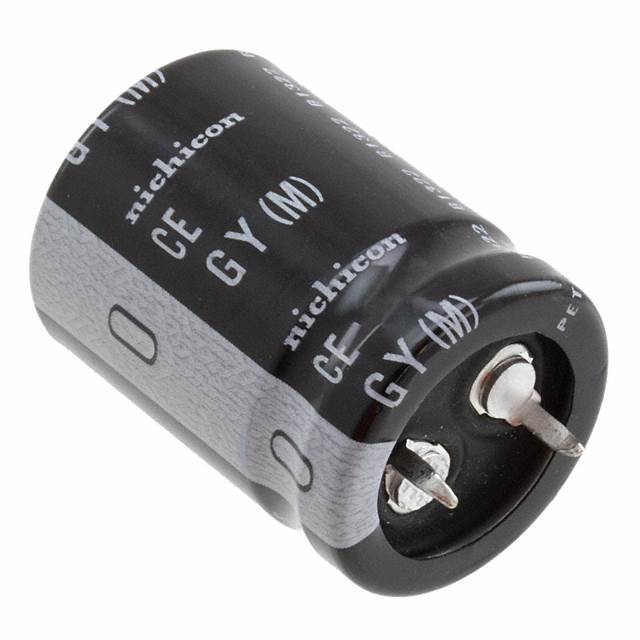

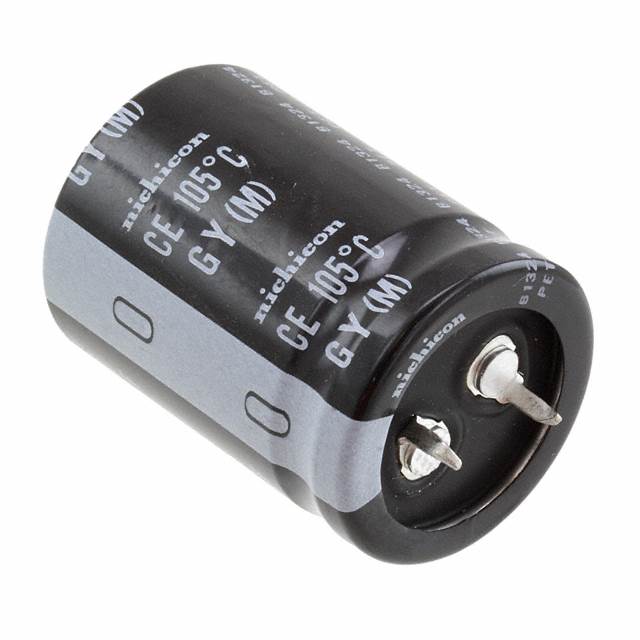

LGY Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 35VOLTS 3900UF 105C 22X30X10L/S

Part	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Tolerance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Package / Case	Mounting Type	Voltage - Rated	Polarization	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Nichicon LGY1V392MELZ30	-40 C	105 ░C	1.26 in	32 mm	General Purpose	20 %	0.394 in	10 mm	5000 Hrs	0.866 "	22 mm	3900 µF	1.6 A	1.84 A	Radial Can - Snap-In	Through Hole	35 V	Polar
Nichicon LGY1J332MELB30	-40 C	105 ░C	1.26 in	32 mm	General Purpose	20 %	0.394 in	10 mm	5000 Hrs	1.181 "		3.3 mF	2.2 A	2.53 A	Radial Can - Snap-In	Through Hole	63 V	Polar	30 mm
Nichicon LGY1E682MELA25	-40 C	105 ░C			General Purpose	20 %	0.394 in	10 mm	5000 Hrs	0.984 "	25 mm	6800 µF	1.9 A	2.185 A	Radial Can - Snap-In	Through Hole	25 VDC	Polar		1.063 in	27 mm
Nichicon LGY1E822MELA30	-40 C	105 ░C	1.26 in	32 mm	General Purpose	20 %	0.394 in	10 mm	5000 Hrs	0.984 "	25 mm		2.1 A	2.415 A	Radial Can - Snap-In	Through Hole	25 VDC	Polar
Nichicon LGY1K392MELB40	-40 C	105 ░C	1.654 in	42 mm	General Purpose	20 %	0.394 in	10 mm	5000 Hrs	1.181 "		3900 µF	2.6 A	2.99 A	Radial Can - Snap-In	Through Hole	80 V	Polar	30 mm
Nichicon LGY1E153MELC30	-40 C	105 ░C	1.26 in	32 mm	General Purpose	20 %	0.394 in	10 mm	5000 Hrs	1.378 "	35 mm		2.9 A	3.335 A	Radial Can - Snap-In	Through Hole	25 VDC	Polar
Nichicon LGY1V682MELA35	-40 C	105 ░C	1.457 in		General Purpose	20 %	0.394 in	10 mm	5000 Hrs	0.984 "	25 mm	6800 µF	2.2 A	2.53 A	Radial Can - Snap-In	Through Hole	35 V	Polar				37 mm
Nichicon LGY1E472MELZ25	-40 C	105 ░C			General Purpose	20 %	0.394 in	10 mm	5000 Hrs	0.866 "	22 mm	4700 µF	1.6 A	1.84 A	Radial Can - Snap-In	Through Hole	25 VDC	Polar		1.063 in	27 mm
Nichicon LGY1V153MELC35	-40 C	105 ░C	1.457 in		General Purpose	20 %	0.394 in	10 mm	5000 Hrs	1.378 "	35 mm		3.2 A	3.68 A	Radial Can - Snap-In	Through Hole	35 V	Polar				37 mm
Nichicon LGY1E123MELB30	-40 C	105 ░C	1.26 in	32 mm	General Purpose	20 %	0.394 in	10 mm	5000 Hrs	1.181 "		12000 µF	2.6 A	2.99 A	Radial Can - Snap-In	Through Hole	25 VDC	Polar	30 mm
