Power Inductors - SMD 1.5uH 0.0042ohm 26A
Power Inductors - SMD 1.5uH 0.0042ohm 26A
| Part | Shielding | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Current - Saturation (Isat) | Package / Case | Type | Inductance Frequency - Test | Mounting Type | Current Rating (Amps) | Material - Core | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

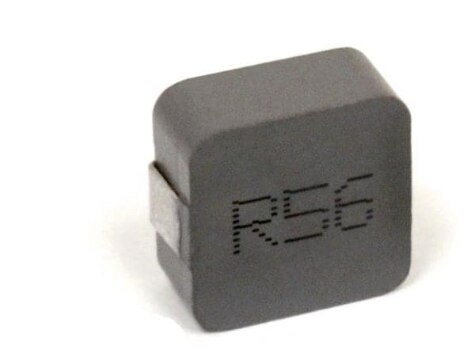

 Laird Technologies EMI | Shielded | 4.2 mOhm | 155 C | -55 C | 1.5 µH | 26 A | Nonstandard | Molded | 100 kHz | Surface Mount | 15 A | Metal Composite | 20 % | 4.1 mm | 0.161 in | 0.433 in | 0.394 in | 10 mm | 11 mm |
