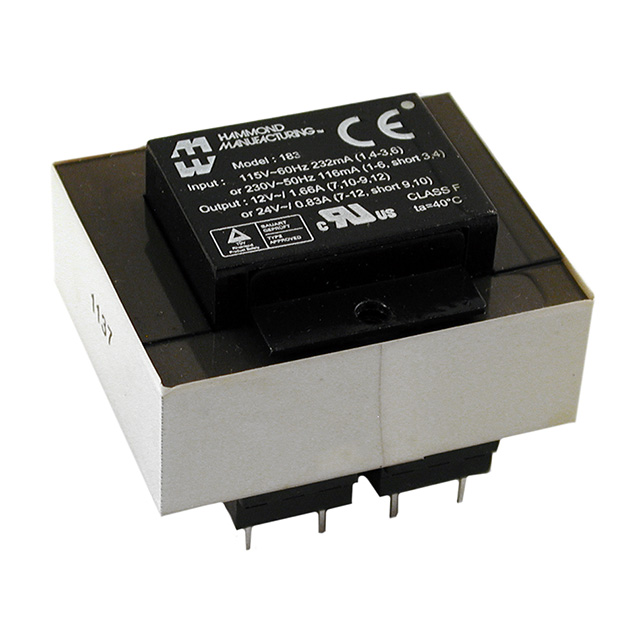

183 Series

Catalog

POWER TRANSFORMERS TRANSFORMER, LOW VOLT PCB MOUNT, 115/230V, 20VA, 12.6V C.T. @ 1.6A, 183 SERIES

Part	Termination Style	Voltage - Secondary (Full Load)	Type	Voltage - Primary	Height - Seated (Max) [Max] [z]	Mounting Type	Weight	Weight	Secondary Winding(s)	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Size / Dimension [y]	Size / Dimension [x]	Power - Max [Max]	Voltage - Isolation	Primary Winding(s)	Weight [custom]	Weight [custom]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Current - Output (Max)	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]
Hammond Manufacturing 183H12	PC Pin	6.3 V 12.6 V	Laminated Core	115 V 230 V	41.28 mm	Through Hole	0.9 lb	408.23 g	Dual	3.2 A	1.6 A	47.63 mm	2.25 "	20 VA	4000 VAC	Dual
Hammond Manufacturing 183F12	PC Pin	6.3 V 12.6 V	Laminated Core	115 V 230 V	34.93 mm	Through Hole			Dual			36.5 mm	41.28 mm	5 VA	4000 VAC	Dual	0.37 lb	167.83 g	400 mA	800 mA
Hammond Manufacturing 183G24	PC Pin		Laminated Core	115 V 230 V	34.93 mm	Through Hole			Dual			39.67 mm	47.63 mm	10 VA	4000 VAC	Dual	0.53 lb	240.4 g			420 mA 840 mA	24 V	12 V
Hammond Manufacturing 183F10	PC Pin	5 V 10 V	Laminated Core	115 V 230 V	34.93 mm	Through Hole			Dual			36.5 mm	41.28 mm	5 VA	4000 VAC	Dual	0.37 lb	167.83 g			1 A 500 mA
