TPS40007 Series

Catalog

TPS40007TDA3

Part	Supplier Device Package	Output Type	Output Configuration	Operating Temperature	Package / Case	Function	Topology	Duty Cycle (Max) [Max]	Frequency - Switching	Mounting Type	Output Phases	Number of Outputs	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Utilized IC / Part	Outputs and Type	Outputs and Type	Main Purpose	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Supplied Contents	Voltage - Output	Current - Output
Texas Instruments TPS40007TDA3	Die	Transistor Driver	Positive	25 °C	Die	Step-Down	Buck
Texas Instruments TPS40007TDA2	Die	Transistor Driver	Positive	25 °C	Die	Step-Down	Buck
Texas Instruments TPS40007DGQ	10-HVSSOP	Transistor Driver	Positive		10-MSOP 10-PowerTFSOP	Step-Down	Buck	94 %	300 kHz	Surface Mount	1	1	Current Limit Enable Soft Start	85 °C	-40 °C	0.118 in 3 mm	2.25 V	5.5 V

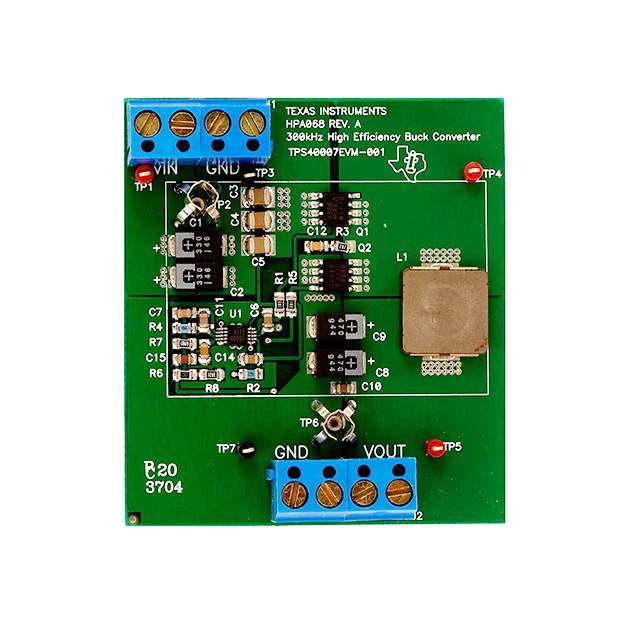

Texas Instruments TPS40007EVM-001									300 kHz										TPS40007	Non-Isolated	1	DC/DC Step Down	Buck	3.3 V	5 V	Fully Populated	Board(s)	2.5 V	10 A
Texas Instruments TPS40007DGQR	10-HVSSOP	Transistor Driver	Positive		10-MSOP 10-PowerTFSOP	Step-Down	Buck	94 %	300 kHz	Surface Mount	1	1	Current Limit Enable Soft Start	85 °C	-40 °C	0.118 in 3 mm	2.25 V	5.5 V
