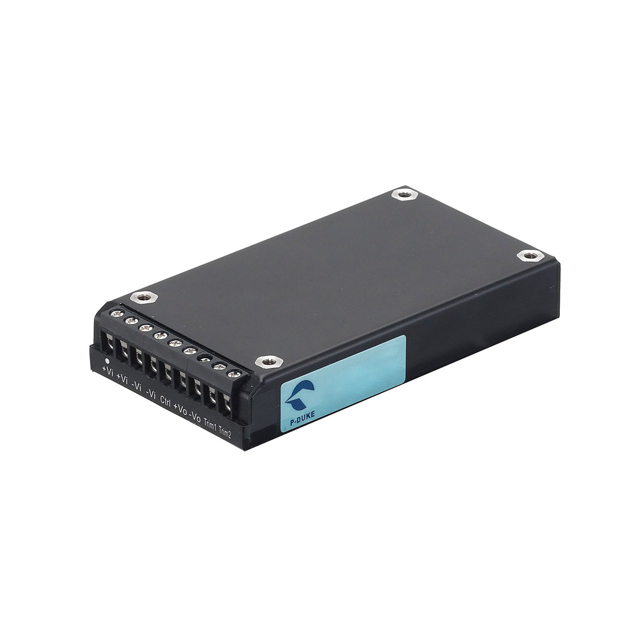

WAD150 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC/DC CONVERTER 24V 151W
| Part | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Efficiency | Voltage - Isolation | Approval Agency | Applications | Voltage - Input (Max) [Max] | Mounting Type | Standard Number | Power (Watts) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 1 | -40 °C | 100 °C | 6.3 A | 9 V | 17 mm | 98 mm | 52.6 mm | 2.07 in | 3.86 " | 0.67 in | 24 V | 87 % | 2250 VDC | CB CE cURus | ITE (Commercial) Railway | 36 V | Chassis Mount | 50155 60950-1 | 151 W | Enclosed |
P-DUKE Technology | 1 | -40 °C | 100 °C | 3.2 A | 9 V | 17 mm | 98 mm | 52.6 mm | 2.07 in | 3.86 " | 0.67 in | 48 V | 86 % | 2250 VDC | CB CE cURus | ITE (Commercial) Railway | 36 V | Chassis Mount | 50155 60950-1 | 154 W | Enclosed |
