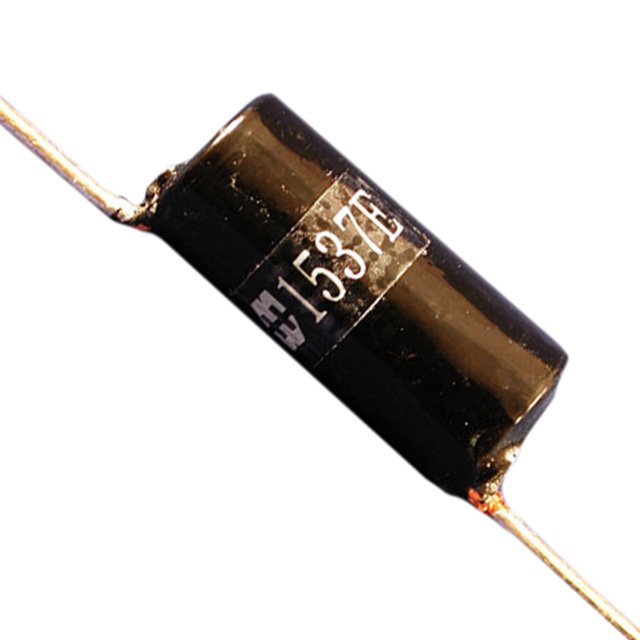

1537 Series

Catalog

FIXED IND 75UH 2A 128 MOHM TH

Part	Inductance Frequency - Test	Package / Case	Shielding	Type	Material - Core	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Mounting Type	Current Rating (Amps)	Tolerance	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]
Hammond Manufacturing 1537K	1 kHz	Axial	Unshielded	Molded	Ferrite	75 µH	13.72 mm	0.54 in	1.25 in	31.75 mm	Through Hole	2 A	5 %	128 mOhm
Hammond Manufacturing 1537M	1 kHz	Axial	Unshielded	Molded	Ferrite	250 µH	17.53 mm	0.69 in			Through Hole	5 A	5 %	114 mOhm	1.25 in	31.75 mm
Hammond Manufacturing 1537E	1 kHz	Axial	Unshielded	Molded	Ferrite	10 µH		0.63 in			Through Hole	20 A	5 %	6 mOhm	1.25 in		1.25 in 16 mm
Hammond Manufacturing 1537F	1 kHz	Axial	Unshielded	Molded	Ferrite	20 µH	15.24 mm				Through Hole	12.5 Amps	5 %	13 mOhm				31.75 mm	1.25 "	0.6 "
Hammond Manufacturing 1537P	1 kHz	Axial	Unshielded	Molded	Ferrite	0.75 mH	15.49 mm	0.61 in			Through Hole	2 A	5 %	465 mOhm	1.25 in	31.75 mm
Hammond Manufacturing 1537G	1 kHz	Axial	Unshielded	Molded	Ferrite		14.73 mm 31.75 mm	0.58 in			Through Hole	8 A	5 %	24 mOhm							31.75 mm
Hammond Manufacturing 1537H	1 kHz	Axial	Unshielded	Molded	Ferrite	40 µH	14.48 mm	0.57 in			Through Hole	5 A	5 %	39 mOhm	1.25 in	31.75 mm
Hammond Manufacturing 1537R	1 kHz	Axial	Unshielded	Molded	Ferrite	1 mH	14.99 mm	0.59 "			Through Hole	1.25 A	5 %	830 mOhm				31.75 mm				1.25 in
Hammond Manufacturing 1537N	1 kHz	Axial	Unshielded	Molded	Ferrite	500 µH	16.51 mm	0.65 in			Through Hole	3.2 A	5 %	260 mOhm	1.25 in	31.75 mm
Hammond Manufacturing 1537L	1 kHz	Axial	Unshielded	Molded	Ferrite	100 µH	18.03 mm	0.71 in	1.25 in	31.75 mm	Through Hole	8 A	5 %	50 mOhm
