TEN 20 Series

Catalog

DC DC CONVERTER 15V 20W

Part	Voltage - Output 1	Size / Dimension	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Min) [Min]	Mounting Type	Type	Applications	Number of Outputs	Package / Case	Voltage - Isolation	Efficiency	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]

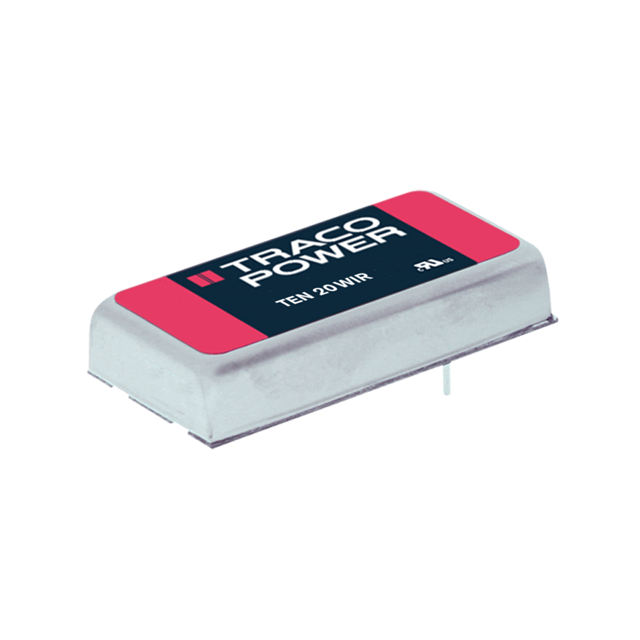

Traco Power TEN 20-4813WIR	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.33 A	-40 °C	85 °C	OCP OVP Remote On/Off SCP	18 V	Through Hole	Isolated Module	ITE (Commercial) Railway	1	6-DIP Module	2250 VDC	89 %	20 W	75 V

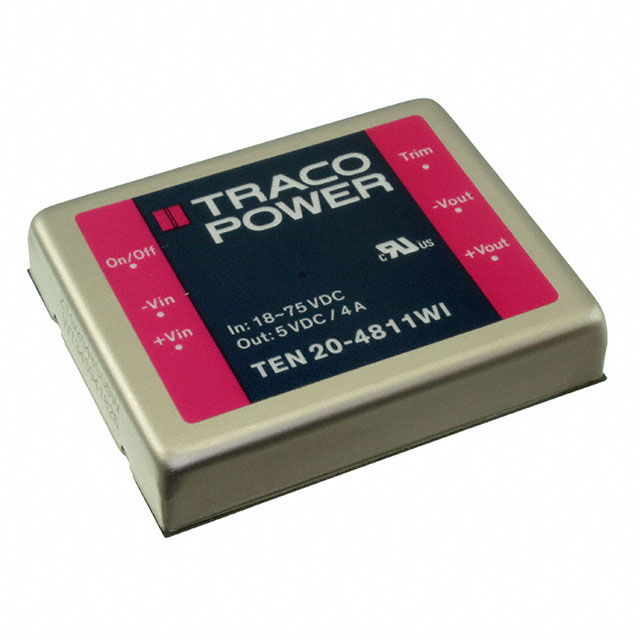

Traco Power TEN 20-4811WIN	5 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	4 A	-40 °C	85 °C	OCP OVP Remote On/Off SCP	18 V	Through Hole	Isolated Module	ITE (Commercial)	1	6-DIP Module	1.5 kV	88 %	20 W	75 V

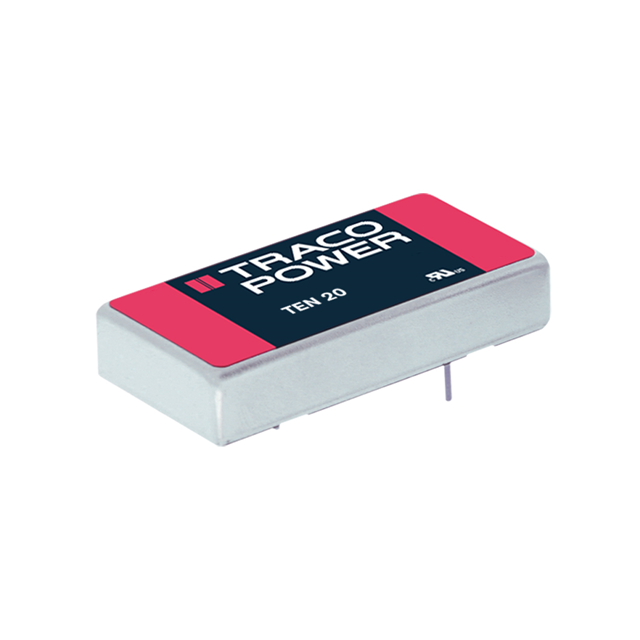

Traco Power TEN 20-2422	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm		-40 °C	85 °C	SCP	18 V	Through Hole	Isolated Module	ITE (Commercial)	2	6-DIP Module	1.5 kV	89 %	20 W	36 V	-12 V	835 mA	835 mA
Traco Power TEN 20-2421WI	5 V		2 A	-40 °C	85 °C	OCP OVP Remote On/Off SCP	9 V	Through Hole	Isolated Module	ITE (Commercial)	2	7-DIP Module	1.5 kV	79 %	20 W	36 V	-5 V			2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm
Traco Power TEN 20-2413	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.34 A	-40 °C	85 °C	SCP	18 V	Through Hole	Isolated Module	ITE (Commercial)	1	6-DIP Module	1.5 kV	89 %	20 W	36 V
Traco Power TEN 20-4811	5 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	4 A	-40 °C	85 °C	SCP	36 V	Through Hole	Isolated Module	ITE (Commercial)	1	6-DIP Module	1.5 kV	85 %	20 W	75 V

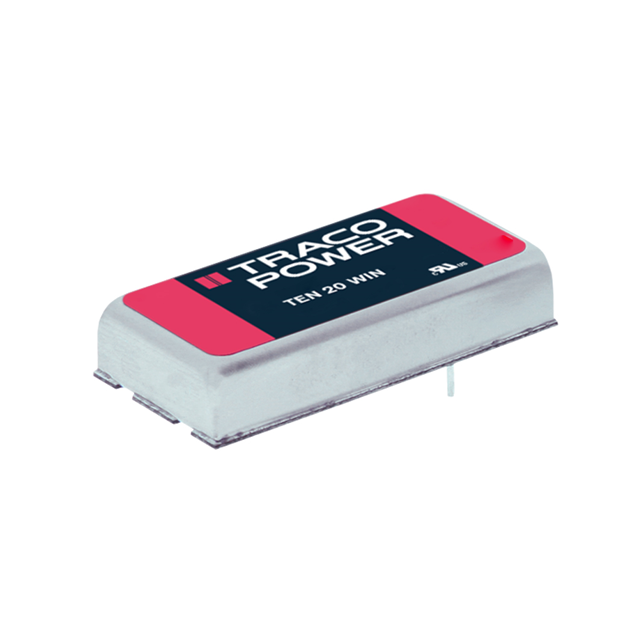

Traco Power TEN 20-4813WIN	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.33 A	-40 °C	85 °C	OCP OVP Remote On/Off SCP	18 V	Through Hole	Isolated Module	ITE (Commercial)	1	6-DIP Module	1.5 kV	87 %	20 W	75 V
Traco Power TEN 20-4823WIR	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm		-40 °C	85 °C	OCP OVP Remote On/Off SCP	18 V	Through Hole	Isolated Module	ITE (Commercial) Railway	2	6-DIP Module	2250 VDC	89 %	20 W	75 V	-15 V	667 mA	667 mA
Traco Power TEN 20-4812WIN	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.67 A	-40 °C	85 °C	OCP OVP Remote On/Off SCP	18 V	Through Hole	Isolated Module	ITE (Commercial)	1	6-DIP Module	1.5 kV	87 %	20 W	75 V
Traco Power TEN 20-4822WIR	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm		-40 °C	85 °C	OCP OVP Remote On/Off SCP	18 V	Through Hole	Isolated Module	ITE (Commercial) Railway	2	6-DIP Module	2250 VDC	88 %	20 W	75 V	-12 V	833 mA	833 mA
