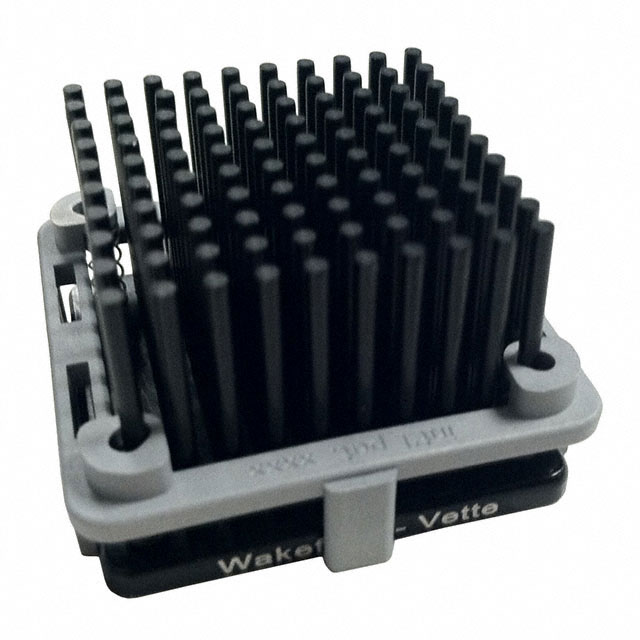

908-35 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

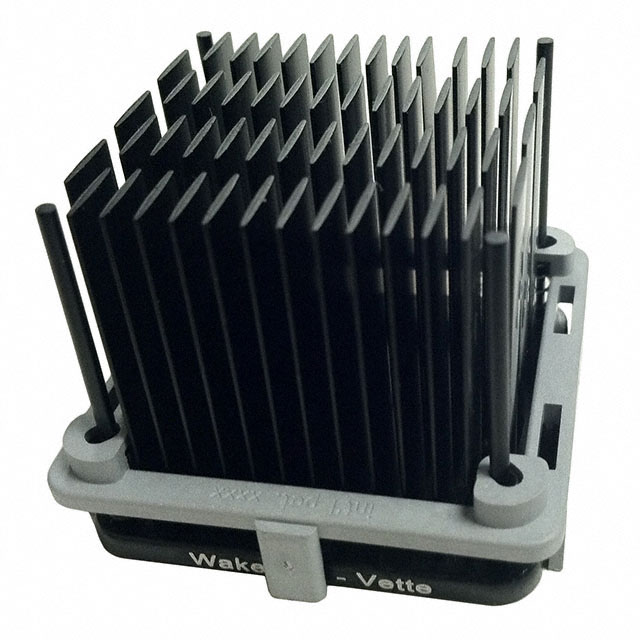

35X35MM ELIPTICAL FIN HEAT SINK WITH CLIP ROHS COMPLIANT: YES

Part	Fin Height	Fin Height [custom]	Thermal Resistance @ Natural	Material Finish	Attachment Method	Package Cooled	Type	Thermal Resistance @ Forced Air Flow	Shape	Material	Width [y]	Width [y]	Length [x]	Length	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height
Wakefield Thermal Solutions 908-35-1-15-2-B-0	14.6 mm	0.575 in	10.6 °C/W	Black Anodized	Push Pin	BGA	Top Mount	2.79 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm
Wakefield Thermal Solutions 908-35-2-28-2-B-0			7.99 °C/W	Black Anodized	Push Pin	BGA	Top Mount	1.97 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm	27.6 mm	1.087 in
Wakefield Thermal Solutions 908-35-1-12-2-B-0		0.457 in	11.1 °C/W	Black Anodized	Push Pin	BGA	Top Mount	3.1 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm			11.6 mm
Wakefield Thermal Solutions 908-35-2-12-2-B-0		0.457 in	11.1 °C/W	Black Anodized	Push Pin	BGA	Top Mount	3.1 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm			11.6 mm
Wakefield Thermal Solutions 908-35-2-21-2-B-0	20.6 mm		8.46 °C/W	Black Anodized	Push Pin	BGA	Top Mount	2.4 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm				0.811 in
Wakefield Thermal Solutions 908-35-1-23-2-B-0		0.892 in	8.8 °C/W	Black Anodized	Push Pin	BGA	Top Mount	2.1 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm			22.65 mm
Wakefield Thermal Solutions 908-35-2-33-2-B-0	32.6 mm		7.65 °C/W	Black Anodized	Push Pin	BGA	Top Mount	1.82 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm				1.283 in
Wakefield Thermal Solutions 908-35-1-12-2-B-0		0.457 in	11.1 °C/W	Black Anodized	Push Pin	BGA	Top Mount	3.1 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm			11.6 mm
Wakefield Thermal Solutions 908-35-2-28-2-B-0			7.99 °C/W	Black Anodized	Push Pin	BGA	Top Mount	1.97 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm	27.6 mm	1.087 in
Wakefield Thermal Solutions 908-35-1-33-2-B-0	32.6 mm		7.11 °C/W	Black Anodized	Push Pin	BGA	Top Mount	1.69 °C/W	Pin Fins Square	Aluminum	1.378 "	35 mm	1.378 "	35 mm				1.283 in
