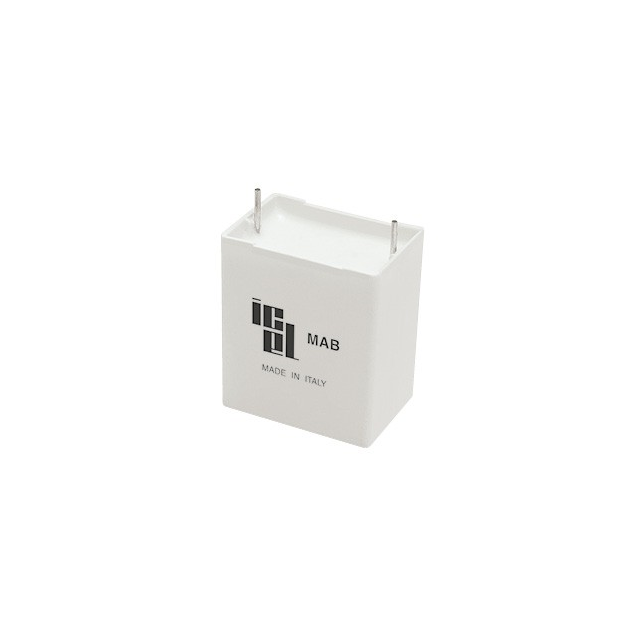

MAB Series

Manufacturer: Nichicon

Catalog

MOTOR START CAPACITORS & MOTOR RUN CAPACITORS BOXED. RADIAL 13 X 22 X 32

Part	Voltage Rating - AC	Dielectric Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Lead Spacing	Lead Spacing	Tolerance	Voltage Rating - DC	Capacitance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension [y]
Nichicon MABA034200KHL	250 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	27.5 mm	1.083 in	10 %	500 V	2 µF	0.866 in	22 mm	32 mm	1.26 in	0.512 "	13 mm	Through Hole
Nichicon MABA035100KJS		Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	37.5 mm	1.476 in	10 %	500 V	10 µF			42.5 mm	1.673 "	0.866 in	22 mm	Through Hole	PC Pins	30 mm	1.181 "
Nichicon MABA014180KJL	400 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	37.5 mm	1.476 in	10 %	800 V	1.8 µF			42.5 mm	1.673 "	0.669 "	17 mm	Through Hole		28 mm	1.102 in
Nichicon MABA024180KHSB	320 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	27.5 mm	1.083 in	10 %	600 V	1.8 µF			32 mm	1.26 in	0.591 in	15 mm	Through Hole				24.5 mm	0.965 in
Nichicon MABA014350KJL	400 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	37.5 mm	1.476 in	10 %	800 V	3.5 µF			42.5 mm	1.673 "	0.866 in	22 mm	Through Hole			1.319 in			33.5 mm
Nichicon MABA013620KHS		Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	27.5 mm	1.083 in	10 %	800 V	0.62 µF			31 mm	1.22 in	0.433 in	11 mm	Through Hole	PC Pins			0.787 in			20 mm
Nichicon MABA014550KJS	400 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	37.5 mm	1.476 in	10 %	800 V	5.5 µF			42.5 mm	1.673 "	1.102 "		Through Hole			1.457 in			37 mm		28 mm
Nichicon MABA045180KJL	160 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	37.5 mm	1.476 in	10 %	370 V	18 µF			42.5 mm	1.673 "	1.102 "		Through Hole			1.457 in			37 mm		28 mm
Nichicon MABA034150KHL	250 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	27.5 mm	1.083 in	10 %	500 V	1500 nF			32 mm	1.26 in	0.433 in		Through Hole				0.787 in			20 mm	11 mm
Nichicon MABA014270KJL	400 V	Polypropylene (PP) Metallized	Motor Run	-40 C	100 °C	Radial	37.5 mm	1.476 in	10 %	800 V	2.7 µF			42.5 mm	1.673 "	0.866 in	22 mm	Through Hole		30 mm	1.181 "
