RP605 Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K
300MA ULTRA-LOW POWER BUCK BOOST
| Part | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Current - Supply | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Current - Output | Topology | Synchronous Rectifier | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Function | Voltage - Output (Min/Fixed) | Output Configuration | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Contents | Regulator Topology | Utilized IC / Part | Main Purpose | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nisshinbo Micro Devices Inc. | Surface Mount | 5.5 V | 1.8 V | 20-XFBGA WLCSP | 85 C | -40 ¯C | Battery Management Power Supplies | 300 nA | 1.71 | 2.32 | 20-WLCSP-P3 | ||||||||||||||||||||
 Nisshinbo Micro Devices Inc. | Surface Mount | 12-UFDFN Exposed Pad | 125 °C | -40 C | DFN(PL)2730-12 | 300 mA | Buck-Boost | 1.8 V | 1 | 5.5 V | Step-Up/Step-Down | 3.3 V | Positive | ||||||||||||||||||

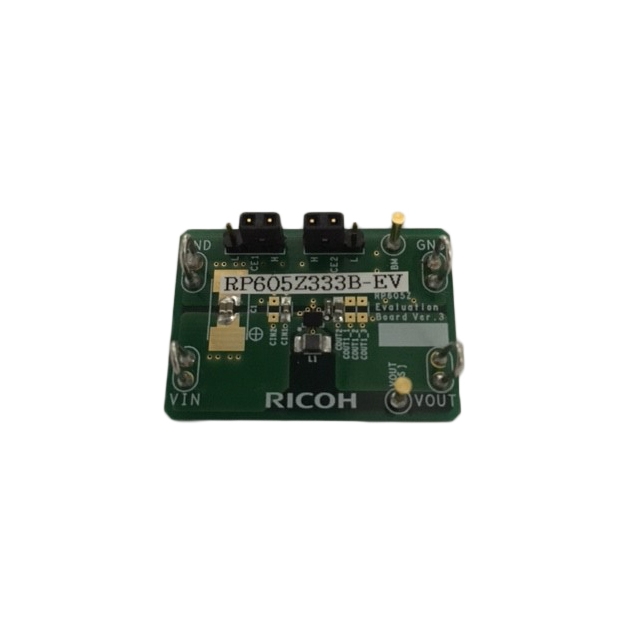

 Nisshinbo Micro Devices Inc. | 300 mA | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Buck-Boost | RP605 | DC/DC Step Up or Down | 3.3 V | 1.8 V | 5.5 V |
