MCP4725 Series

Catalog

IC,D/A CONVERTER,SINGLE,12-BIT,CMOS,TSOP,6PIN ROHS COMPLIANT: YES

Part	Architecture	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Data Interface	Mounting Type	Package / Case	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Settling Time	Supplier Device Package	INL/DNL (LSB)	Reference Type	Number of Bits	Grade	Qualification	Sampling Rate (Per Second) [Min]	Sampling Rate (Per Second) [Max]	Number of DAC's	Utilized IC / Part	Supplied Contents	DAC Type
Microchip Technology MCP4725A2T-E/CH	String DAC	125 °C	-40 °C	Voltage - Buffered	5.5 V	2.7 V	I2C	Surface Mount	SOT-23-6	2.7 V	5.5 V	6 µs	SOT-23-6	0.2 LSB 2 LSB	Supply	12 bits
Microchip Technology MCP4725A0T-E/CHVAO	String DAC	125 °C	-40 °C	Voltage - Buffered	5.5 V	2.7 V	I2C	Surface Mount	SOT-23-6	2.7 V	5.5 V	6 µs	SOT-23-6	0.2 LSB 2 LSB	Supply	12 bits	Automotive	AEC-Q100

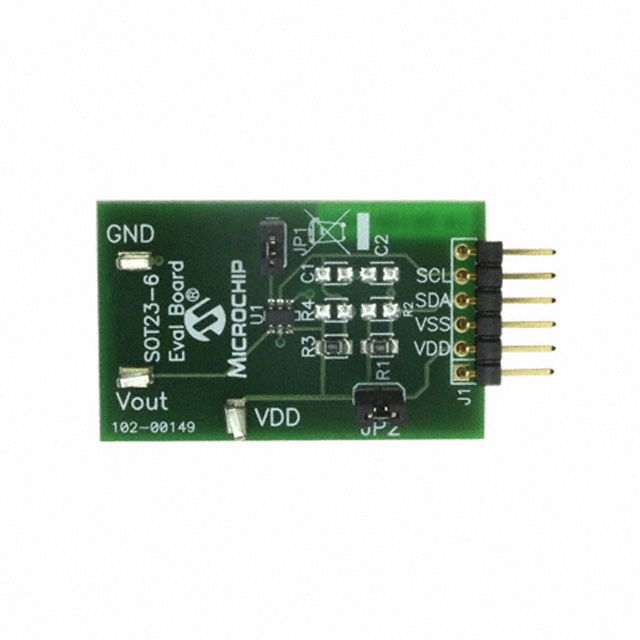

Microchip Technology MCP4725EV							I2C					6 µs				12 bits			100k	3.4M	1	MCP4725	Board(s)	Voltage
Microchip Technology MCP4725A1T-E/CH	String DAC	125 °C	-40 °C	Voltage - Buffered	5.5 V	2.7 V	I2C	Surface Mount	SOT-23-6	2.7 V	5.5 V	6 µs	SOT-23-6	0.2 LSB 2 LSB	Supply	12 bits
Microchip Technology MCP4725DM-PTPLS							I2C					6 µs				12 bits			100k	3.4M	1	MCP4725	Board(s)	Voltage
